Description
General part information

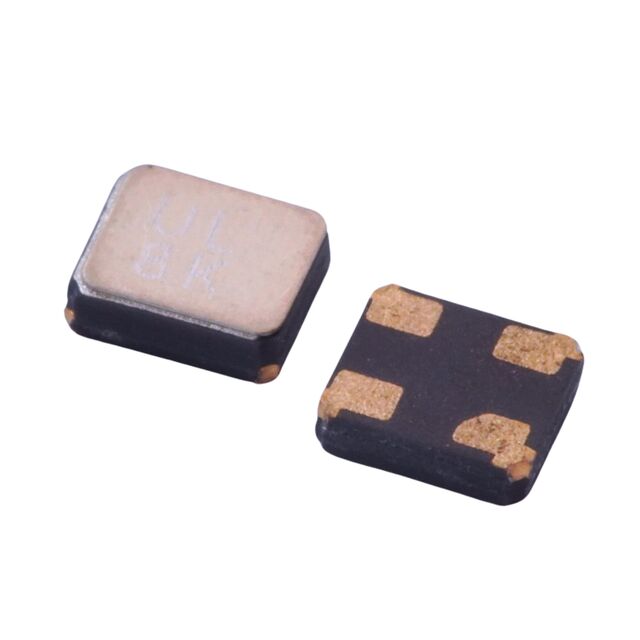

TZ3525AOAR83
Resonator
Technical Specifications
Parameters and characteristics for this part
| Specification | TZ3525AOAR83 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 32 MHz |
| Frequency Stability (Negative Tolerance) | 12 ppm |
| Frequency Stability (Positive Tolerance) | 10 ppm |
| Frequency Tolerance (Negative) | 4 ppm |
| Frequency Tolerance (Positive) | 8 ppm |
| Height - Seated (Max) | 0.014 in |
| Load Capacitance | 6 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 1.25 mm |
| Package Name | 4-SMD |
| Package Width | 1.05 mm |
| Size / Dimension Length | 0.049 in |
| Size / Dimension Width | 0.041 in |
| Type | MHz Crystal |
