2413C SL002

Active

ALPHA WIRE

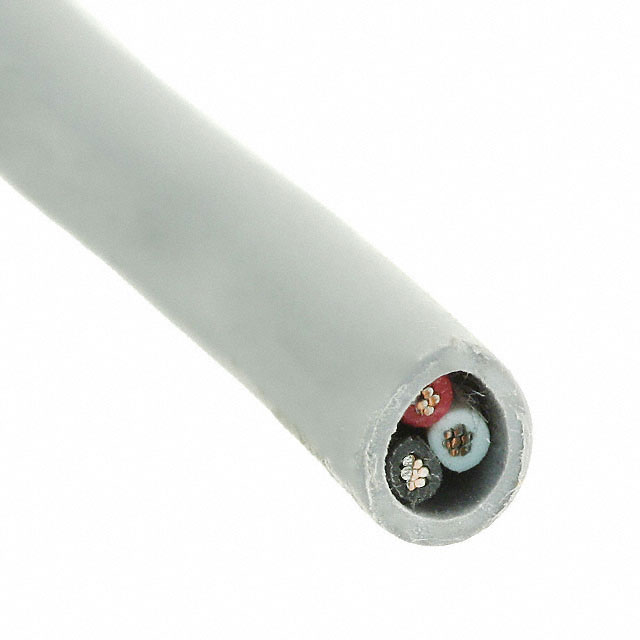

CABLE 3CON 20AWG SLATE SHLD 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3CON 20AWG SLATE SHLD 500'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2413C SL002	2413C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Polyethylene (PE)	Polyethylene (PE)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.195 in	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm	4.95 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in	0.02 in
Jacket (Insulation) Thickness	0.508 mm	0.508 mm
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	100 - 500 '
Length [x]	152.4 m	30.5 - 152.4 m
Number of Conductors	3	3
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

CABLE 3CON 20AWG SLATE SHLD 500'

Part	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Voltage	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Shield Coverage	Cable Type	Conductor Insulation	Number of Conductors	Length [x]	Length [x]	Usage	Jacket (Insulation) Material	Features	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length	Length
ALPHA WIRE 2413C SL002	Aluminum	0.02 in	0.508 mm	Copper, Tinned	300 V	Foil	0.195 in	4.95 mm	20 AWG	100 %	Multi-Conductor	Polyethylene (PE)	3	500 '	152.4 m	Communication, Control	Poly-Vinyl Chloride (PVC)	Drain Wire	28	7	Slate
ALPHA WIRE 2413C SL005	Aluminum	0.02 in	0.508 mm	Copper, Tinned	300 V	Foil	0.195 in	4.95 mm	20 AWG	100 %	Multi-Conductor	Polyethylene (PE)	3	100 ft	30.5 m	Communication, Control	Poly-Vinyl Chloride (PVC)	Drain Wire	28	7	Slate
ALPHA WIRE 2413C SL021	Aluminum	0.02 in	0.508 mm	Copper, Tinned	300 V	Foil	0.195 in	4.95 mm	20 AWG	100 %	Multi-Conductor	Polyethylene (PE)	3			Communication, Control	Poly-Vinyl Chloride (PVC)	Drain Wire	28	7	Slate	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Slate 20 AWG Foil 500.0' (152.4m)
