1241.6623.1112000

Active

SCHURTER Inc.

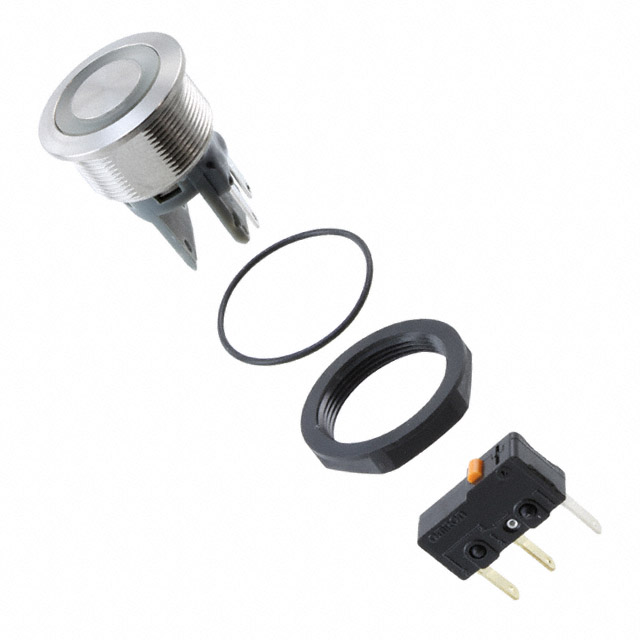

SWITCH PUSHBUTTON SPDT 100MA 30V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 100MA 30V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.6623.1112000	1241.6623 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	SPDT
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	100 mA	5 - 100 mA
Electrical Life	200000 Cycles	200000 Cycles
Illumination Type, Color	LED, Green	LED, Green, Red
Illumination Voltage (Nominal)	2.1 VDC	1.9 - 2.1 VDC
Ingress Protection	IP40	IP40
Mechanical Life	1500000 Cycles	1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	19.1 mm	19.1 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	-	125 V
Voltage Rating - DC	30 V	30 V

SWITCH PUSHBUTTON SPDT 100MA 30V

Part	Ingress Protection	Mounting Type	Illumination Voltage (Nominal)	Actuator Marking	Voltage Rating - DC	Termination Style	Mechanical Life	Illumination Type, Color	Color - Actuator/Cap	Actuator Type	Switch Function	Current Rating (Amps)	Electrical Life	Type	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [diameter]	Circuit	Voltage Rating - AC
SCHURTER Inc. 1241.6623.1112000	IP40	Panel Mount, Front	2.1 VDC	No Marking	30 V	Quick Connect - 0.110" (2.8mm)	1500000 Cycles	Green, LED	Silver	Button, Flush, Round	On-Mom	100 mA	200000 Cycles	Anti-Vandal, Illuminated	-25 °C	85 °C	19.1 mm	SPDT
SCHURTER Inc. 1241.6623.1122000	IP40	Panel Mount, Front	2.1 VDC	No Marking		Quick Connect - 0.110" (2.8mm)	1500000 Cycles	Green, LED	Silver	Button, Flush, Round	On-Mom	5 A	200000 Cycles	Anti-Vandal, Illuminated	-25 °C	85 °C	19.1 mm	SPDT	125 V
SCHURTER Inc. 1241.6623.1121000	IP40	Panel Mount, Front	1.9 VDC	No Marking		Quick Connect - 0.110" (2.8mm)	1500000 Cycles	LED, Red	Silver	Button, Flush, Round	On-Mom	5 A	200000 Cycles	Anti-Vandal, Illuminated	-25 °C	85 °C	19.1 mm	SPDT	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
