1522
ActiveCurtis Industries

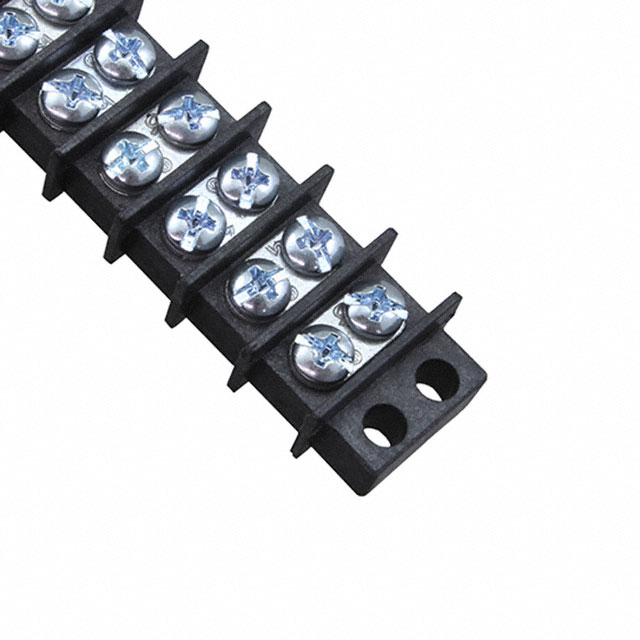

CONN BARRIER STRP 22CIRC 0.375"
1522
ActiveCurtis Industries
CONN BARRIER STRP 22CIRC 0.375"
Description
General part information
1522
22 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
Technical Specifications
Parameters and characteristics for this part
| Specification | 1522 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Current Rating | 20 A |
| Features | Flange |
| Material - Insulation | PPO, Polyphenylene Oxide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Chassis, Panel |
| Number of Circuits | 22 |
| Number of Rows | 2 |
| Number of Wire Entries | 44 |
| Operating Temperature | 110 °C |
| Pitch | 0.375 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
