FGJ.1B.306.CWLD72Z

Active

LEMO

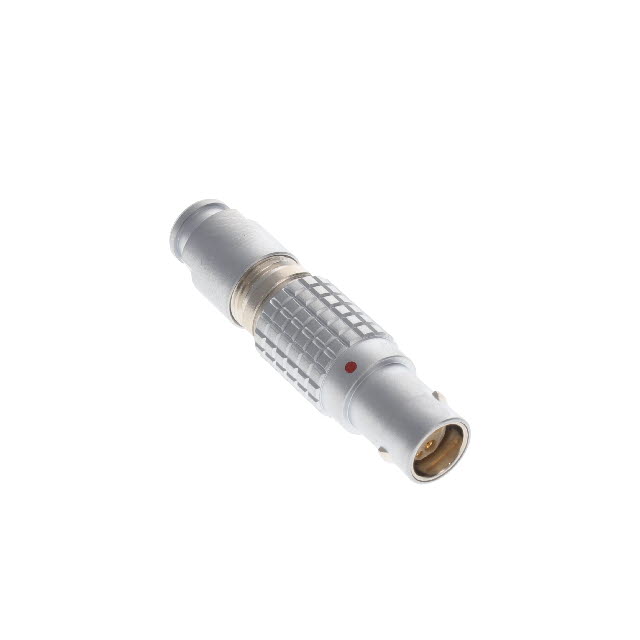

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGJ.1B.306.CWLD72Z

Active

LEMO

CONN PLUG FMALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 110.11
		10	$ 85.74
		25	$ 78.04
		50	$ 72.84
		100	$ 68.14

Description

General part information

FGJ.1B Series

6 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGJ.1B.306.CWLD72Z	FGJ.1B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome, Polyetheretherketone (PEEK)
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	3.1 - 4.2 mm
Cable Opening	-	5.2 mm
Cable Opening	-	6.2 mm
Cable Opening	-	5.2 - 7.2 mm
Cable Opening	-	0.205 - 0.283 in
Cable Opening	-	0.244 - 0.299 in
Cable Opening	-	0.122 - 0.165 in
Cable Opening	-	7.6 mm
Cable Opening	-	0.122 in
Cable Opening	-	0.106 in
Cable Opening	-	3.1 mm
Cable Opening	-	2.7 mm
Cable Opening [custom]	0.283 in, 0.244 in	0.244 - 0.283 in
Cable Opening [custom]	7.2 mm, 6.2 mm	6.2 - 7.2 mm
Color	Silver	Silver, Beige
Connector Type	Female Sockets, Plug	Female Sockets, Plug, Insert Shell, Plug Housing
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Contact Shape	-	Circular
Contact Size	-	0.7 - 0.9 mm
Contact Type	-	Crimp
Current Rating (Amps)	7 A	1.5 - 15 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell
Housing Color	-	Beige, Black, Silver
Ingress Protection	IP50	IP50
Insert Material	-	Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included; Insert Not Included, Contacts Not Included
Number of Positions	6	2 - 14
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 - -50 °C
Orientation	J	J
Primary Material	Metal	Metal, Plastic
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	306	302 - 316
Shielding	Shielded	Shielded
Termination	-	Crimp
Type	-	For Female Sockets

FGJ.1B Series

CONN PLUG FMALE 5POS GOLD CRIMP

...

Part	Mounting Type	Orientation	Ingress Protection	Primary Material	Contact Finish - Mating	Fastening Type	Shell Finish	Connector Type	Contact Material	Features	Insert Material	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Material	Material Flammability Rating	Color	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating	Termination	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Number of Positions	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
LEMO FGJ.1B.305.CYMD52	Free Hanging (In-Line)	J	IP50	Metal	Gold	Push-Pull	Chrome	Female Sockets, Plug	Bronze	Backshell	Polyetheretherketone (PEEK)	305	-55 °C	250 °C	9 A	Brass	UL94 V-0	Silver	Shielded	0.165 in, 0.205 in	4.2 mm	5.2 mm	59 Áin	1.5 Ám	Brass, Chrome	Crimp
LEMO FGJ.1B.307.CLLD62Z	Free Hanging (In-Line)	J	IP50	Metal	Gold	Push-Pull	Chrome	Female Sockets, Plug	Bronze	Backshell	Polyetheretherketone (PEEK)	307	-55 °C	250 °C	7 A	Brass	UL94 V-0	Silver	Shielded				59 Áin	1.5 Ám	Brass, Chrome		6.2 mm	5.2 mm	0.205 in	0.244 in	7
LEMO FGJ.1B.302.CLLD62	Free Hanging (In-Line)	J	IP50	Metal	Gold	Push-Pull	Chrome	Female Sockets, Plug	Bronze	Backshell	Polyetheretherketone (PEEK)	302	-55 °C	250 °C	15 A	Brass	UL94 V-0	Silver	Shielded				59 Áin	1.5 Ám	Brass, Chrome		6.2 mm	5.2 mm	0.205 in	0.244 in	2
LEMO FGJ.1B.304.CLLD52	Free Hanging (In-Line)	J	IP50	Metal	Gold	Push-Pull	Chrome	Female Sockets, Plug	Bronze	Backshell	Polyetheretherketone (PEEK)	304	-55 °C	250 °C	10 A	Brass	UL94 V-0	Silver	Shielded	0.165 in, 0.205 in	4.2 mm	5.2 mm	59 Áin	1.5 Ám	Brass, Chrome						4
LEMO FGJ.1B.304.CLLD42	Free Hanging (In-Line)	J	IP50	Metal	Gold	Push-Pull	Chrome	Female Sockets, Plug	Bronze	Backshell	Polyetheretherketone (PEEK)	304	-55 °C	250 °C	10 A	Brass	UL94 V-0	Silver	Shielded		3.1 mm, 4.2 mm		59 Áin	1.5 Ám	Brass, Chrome						4	0.122 in, 0.165 in
LEMO FGJ.1B.307.CYMD76	Free Hanging (In-Line)	J	IP50	Metal	Gold	Push-Pull	Chrome	Female Sockets, Plug	Bronze	Backshell	Polyetheretherketone (PEEK)	307	-55 °C	250 °C	7 A	Brass	UL94 V-0	Silver	Shielded				59 Áin	1.5 Ám	Brass, Chrome	Crimp		7.2 mm	0.283 in	0.299 in	7		7.6 mm
LEMO FGJ.1B.304.CLLD72	Free Hanging (In-Line)	J	IP50	Metal	Gold	Push-Pull	Chrome	Female Sockets, Plug	Bronze	Backshell	Polyetheretherketone (PEEK)	304	-55 °C	250 °C	10 A	Brass	UL94 V-0	Silver	Shielded				59 Áin	1.5 Ám	Brass, Chrome						4			0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO FGJ.1B.306.CLLD62	Free Hanging (In-Line)	J	IP50	Metal	Gold	Push-Pull	Chrome	Female Sockets, Plug	Bronze	Backshell	Polyetheretherketone (PEEK)	306	-55 °C	250 °C	7 A	Brass	UL94 V-0	Silver	Shielded				59 Áin	1.5 Ám	Brass, Chrome		6.2 mm	5.2 mm	0.205 in	0.244 in	6
LEMO FGJ.1B.305.CYMD62	Free Hanging (In-Line)	J	IP50	Metal	Gold	Push-Pull	Chrome	Female Sockets, Plug	Bronze	Backshell	Polyetheretherketone (PEEK)	305	-55 °C	250 °C	9 A	Brass	UL94 V-0	Silver	Shielded				59 Áin	1.5 Ám	Brass, Chrome	Crimp	6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO FGJ.1B.305.CLLD42Z	Free Hanging (In-Line)	J	IP50	Metal	Gold	Push-Pull	Chrome	Female Sockets, Plug	Bronze	Backshell	Polyetheretherketone (PEEK)	305	-55 °C	250 °C	9 A	Brass	UL94 V-0	Silver	Shielded		3.1 mm, 4.2 mm		59 Áin	1.5 Ám	Brass, Chrome							0.122 in, 0.165 in
