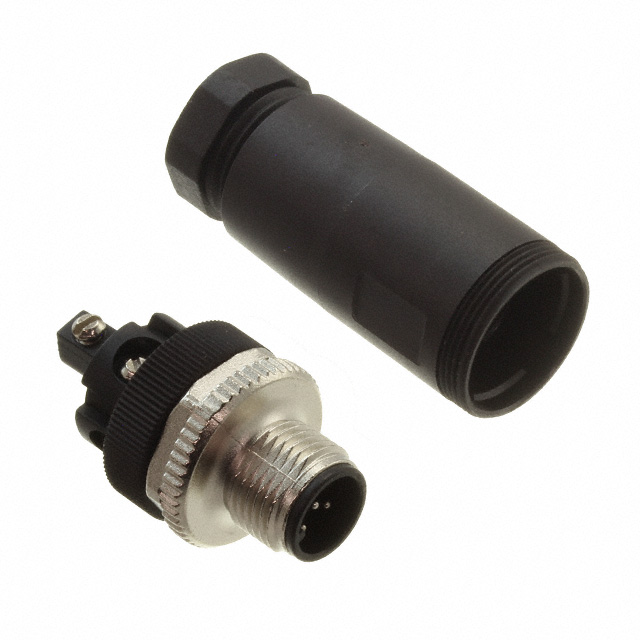

V15S-G-PG9
ActivePEPPERL+FUCHS
CONN PLUG MALE 5P COPPER SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
V15S-G-PG9
ActivePEPPERL+FUCHS
CONN PLUG MALE 5P COPPER SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V15S-G-PG9 |
|---|---|
| Applications | Industrial Automation |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in |
| Color | Black, Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Copper Tin Zinc |
| Contact Material | Copper Zinc |
| Current Rating (Amps) | 4 A |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.39 | |
| 10 | $ 32.74 | |||
| 25 | $ 31.33 | |||
| 50 | $ 30.32 | |||
| 100 | $ 29.30 | |||
| 250 | $ 27.69 | |||
Description
General part information
V15S-G Series
5 Position Circular Connector Plug, Male Pins Screw
