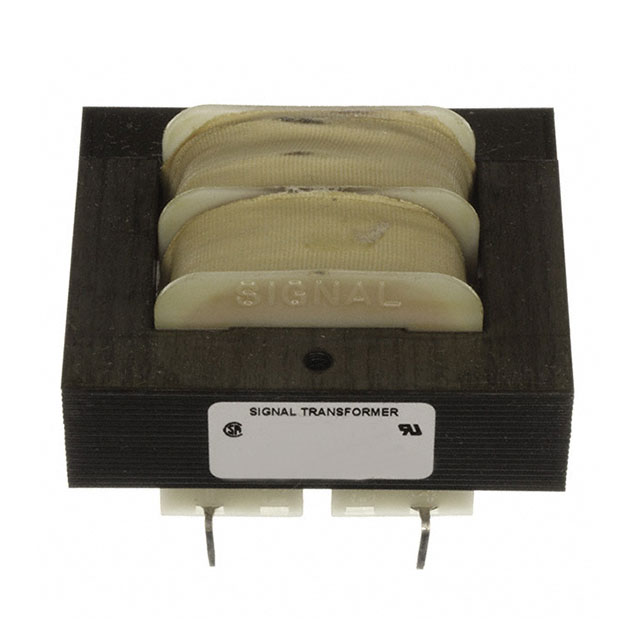

ST-6-24
ActiveSignal Transformer
PWR XFMR LAMINATED 20VA TH
ST-6-24
ActiveSignal Transformer
PWR XFMR LAMINATED 20VA TH
Description
General part information
ST-6-24
PWR XFMR LAMINATED 20VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | ST-6-24 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 1.6 A |
| Current - Output (Max) Series | 800 mA |
| Height - Seated (Max) | 36.9 mm |
| Mounting Type | Through Hole |
| Power - Max | 20 W |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 57.2 mm |
| Size / Dimension Width | 47.6 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) (Parallel) | 12 V |
| Voltage - Secondary (Full Load) (Series) | 24 V |
| Weight | 0.8 lb |
