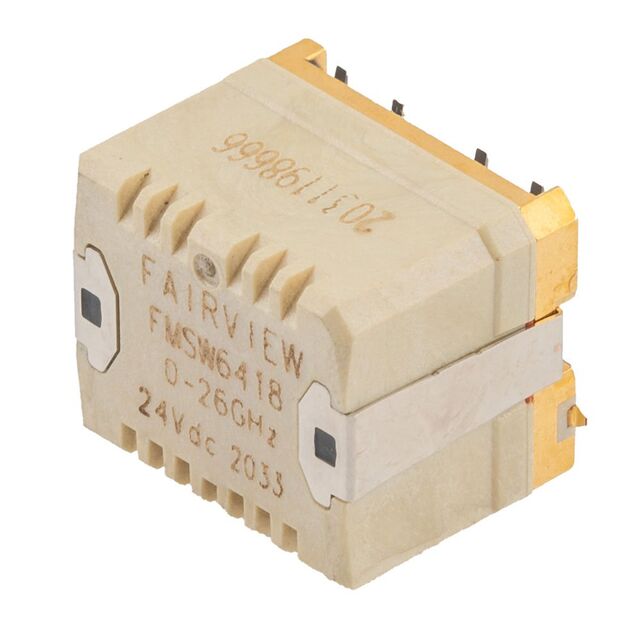

FMSW6418
ActiveFairview Microwave
EM RELAY SWITCH 26.5 GHZ 24 V SM
FMSW6418
ActiveFairview Microwave
EM RELAY SWITCH 26.5 GHZ 24 V SM
Description
General part information
FMSW6418
RF Switch IC General Purpose SPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW6418 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 26.5 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Insertion Loss | 1 dB |
| Isolation (Min) | 40 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | General Purpose |
| Test Frequency | 26.5 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 20.5 V |
