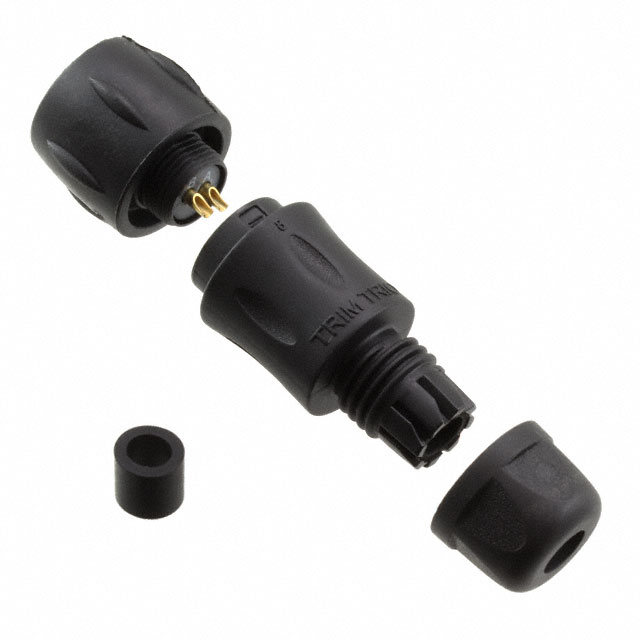

UTS6JC8E2S
ActiveSouriau-Sunbank by Eaton
CONN PLUG FMALE 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
UTS6JC8E2S
ActiveSouriau-Sunbank by Eaton
CONN PLUG FMALE 2P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UTS6JC8E2S |
|---|---|
| Applications | Instrumentation, Energy, Lighting, Telecommunications |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 16 Áin |
| Contact Finish Thickness - Mating | 0.41 Ám |
| Contact Material | Brass |
| Current Rating (Amps) | 7 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, UV Resistant, Backshell |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polychloroprene |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Plastic |
| Shell Size - Insert | 8-2 |
| Shielding | Unshielded |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.22 | |
| 10 | $ 22.96 | |||
| 25 | $ 21.96 | |||
| 50 | $ 21.26 | |||
| 100 | $ 20.55 | |||
| 250 | $ 19.41 | |||
| 500 | $ 18.85 | |||
Description
General part information
UTS6JC8E2S
2 Position Circular Connector Plug, Female Sockets Solder Cup
Documents
Technical documentation and resources
No documents available
