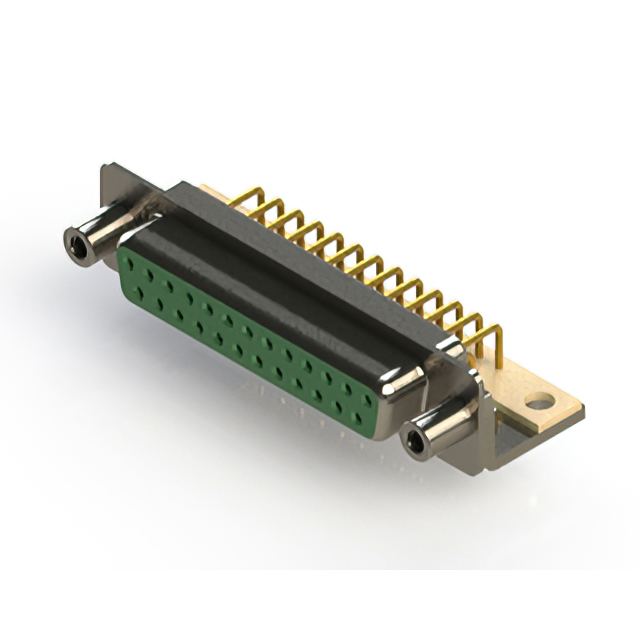

630-M25-640-GT6

Active

EDAC Inc.

CONN D-SUB RCPT 25POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-M25-640-GT6

Active

EDAC Inc.

CONN D-SUB RCPT 25POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-M25-640-GT6

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Green
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded, Mounting Brackets
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

630-M25 Series

...

Part	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Connector Style	Termination	Flange Feature	Contact Type	Features	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish	Connector Type	Shell Material, Finish
EDAC Inc. 630-M25-340-BT2	9.4 mm	0.37 in	15 µin	0.38 µm	Black	2	Copper Alloy	-55 °C	125 °C	5 A	Through Hole Right Angle	UL94 V-0	D-Sub	Solder	Housing/Shell (Unthreaded)	Signal	Shielded	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Receptacle Female Sockets
EDAC Inc. 630-M25-640-WN4	9.4 mm	0.37 in	30 Áin	0.76 Ám	White	2	Copper Alloy	-55 °C	125 °C	5 A	Through Hole Right Angle	UL94 V-0	D-Sub	Solder	Housing/Shell (4-40)	Signal	Mounting Brackets Shielded	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Receptacle Female Sockets	Nickel Plated Steel
EDAC Inc. 630-M25-640-LN3	9.4 mm	0.37 in	30 Áin	0.76 Ám	Blue	2	Copper Alloy	-55 °C	125 °C	5 A	Through Hole Right Angle	UL94 V-0	D-Sub	Solder	Housing/Shell (4-40)	Signal	Board Lock Mounting Brackets Shielded	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Receptacle Female Sockets	Nickel Plated Steel
EDAC Inc. 630-M25-340-LN1	9.4 mm	0.37 in	15 µin	0.38 µm	Blue	2	Copper Alloy	-55 °C	125 °C	5 A	Through Hole Right Angle	UL94 V-0	D-Sub	Solder	Housing/Shell (Unthreaded)	Signal	Shielded	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Receptacle Female Sockets	Nickel Plated Steel
EDAC Inc. 630-M25-340-LN5	9.4 mm	0.37 in	15 µin	0.38 µm	Blue	2	Copper Alloy	-55 °C	125 °C	5 A	Through Hole Right Angle	UL94 V-0	D-Sub	Solder	4-40	Signal	Mounting Brackets Shielded	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Receptacle Female Sockets	Nickel Plated Steel
EDAC Inc. 630-M25-640-GT6	9.4 mm	0.37 in	30 Áin	0.76 Ám	Green	2	Copper Alloy	-55 °C	125 °C	5 A	Through Hole Right Angle	UL94 V-0	D-Sub	Solder	4-40	Signal	Mounting Brackets Shielded	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Receptacle Female Sockets
EDAC Inc. 630-M25-340-WN3	9.4 mm	0.37 in	15 µin	0.38 µm	White	2	Copper Alloy	-55 °C	125 °C	5 A	Through Hole Right Angle	UL94 V-0	D-Sub	Solder	Housing/Shell (4-40)	Signal	Board Lock Mounting Brackets Shielded	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Receptacle Female Sockets	Nickel Plated Steel
EDAC Inc. 630-M25-640-GN4	9.4 mm	0.37 in	30 Áin	0.76 Ám	Green	2	Copper Alloy	-55 °C	125 °C	5 A	Through Hole Right Angle	UL94 V-0	D-Sub	Solder	Housing/Shell (4-40)	Signal	Mounting Brackets Shielded	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Receptacle Female Sockets	Nickel Plated Steel
EDAC Inc. 630-M25-340-BN1	9.4 mm	0.37 in	15 µin	0.38 µm	Black	2	Copper Alloy	-55 °C	125 °C	5 A	Through Hole Right Angle	UL94 V-0	D-Sub	Solder	Housing/Shell (Unthreaded)	Signal	Shielded	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Receptacle Female Sockets	Nickel Plated Steel
EDAC Inc. 630-M25-640-WN2	9.4 mm	0.37 in	30 Áin	0.76 Ám	White	2	Copper Alloy	-55 °C	125 °C	5 A	Through Hole Right Angle	UL94 V-0	D-Sub	Solder	Housing/Shell (Unthreaded)	Signal	Shielded	Polyamide (PA6T) Nylon 6T	B DB	3	Gold	Receptacle Female Sockets	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 13.05

Description

General part information

630-M25 Series

25 Position D-Sub Receptacle, Female Sockets Connector
