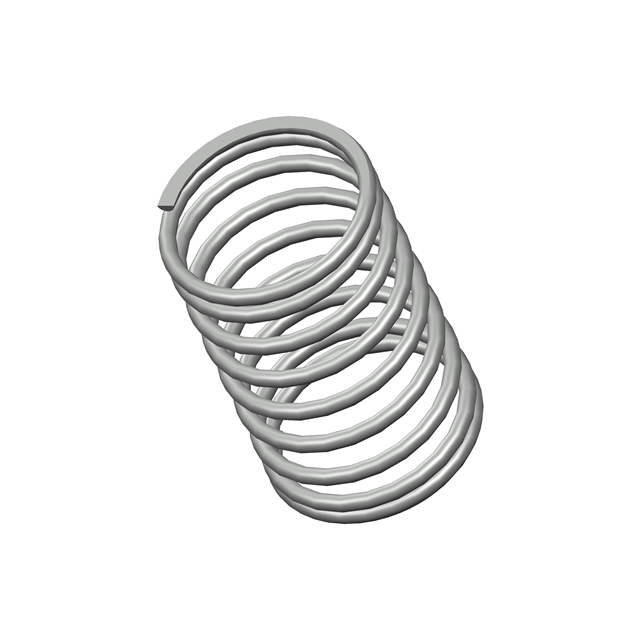

11629CS
ActiveCentury Spring Corp
COMP O=1.578,L= 2.50,W= .120
11629CS
ActiveCentury Spring Corp
COMP O=1.578,L= 2.50,W= .120
Description
General part information
11629CS
COMP O=1.578,L= 2.50,W= .120
Technical Specifications
Parameters and characteristics for this part
| Specification | 11629CS |
|---|---|
| Diameter - Inside | 1.338 in |
| Diameter - Outside | 1.578 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 2.5 in |
| Material | Spring Steel |
| Rate (lbs/in) | 14 lbs/in |
| Type | Compression |
| Wire Diameter | 0.12 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
