Description
General part information
52-745.0292

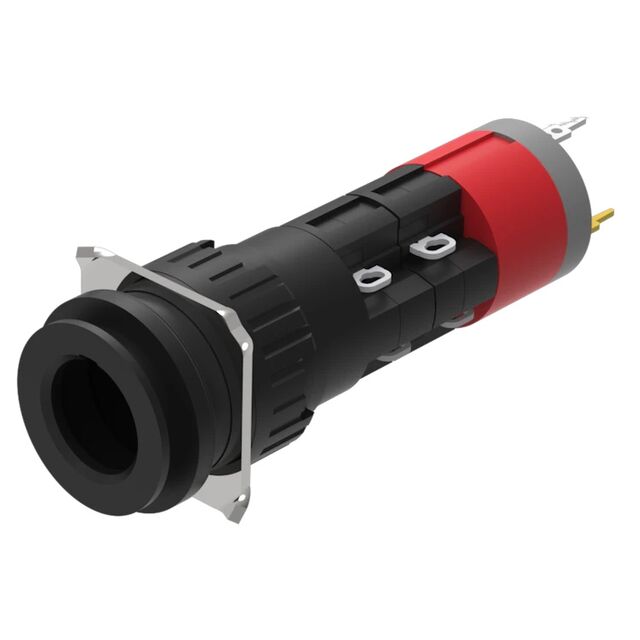

Selector Switch 2 Position 4PST-2NO/2NC 3A (AC), 2A (DC) 125 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 52-745.0292 |
|---|---|
| Approval Agency | CB, DNV, CSA, ENEC, UL, CQC |
| Circuit | 4PST-2NO/2NC |
| Current Rating | 2 A, 3 A |
| Depth Behind Flange | 36 mm |
| Electrical Life (Cycles) | 50000 |
| Illumination | Illuminated |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 2000000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 16.2 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Solder Lug, PC Pin |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
