Description
General part information

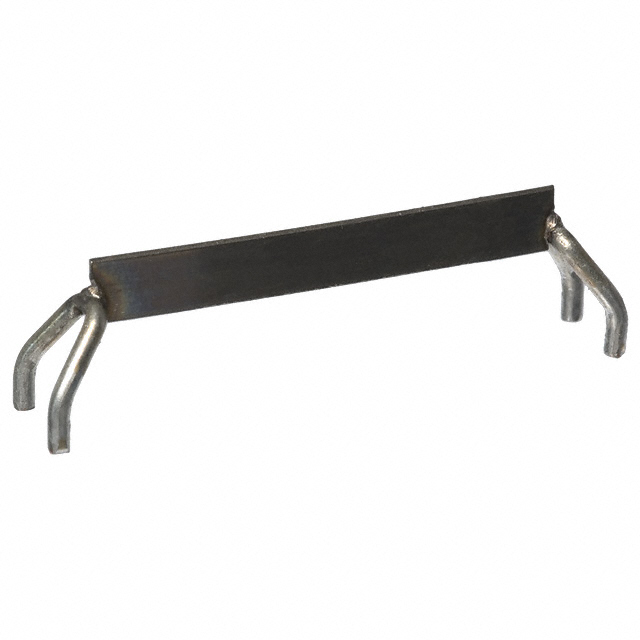

610FPR020E
20 mOhms ±1% 1W Through Hole Resistor Radial Current Sense, Non-Inductive Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | 610FPR020E |
|---|---|
| Composition | Metal Element |
| Features | Current Sense, Non-Inductive |
| Height - Seated (Max) | 0.215 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 1 W |
| Resistance | 20 mOhms |
| Size / Dimension Length | 1.1 in |
| Size / Dimension Width | 0.2 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
