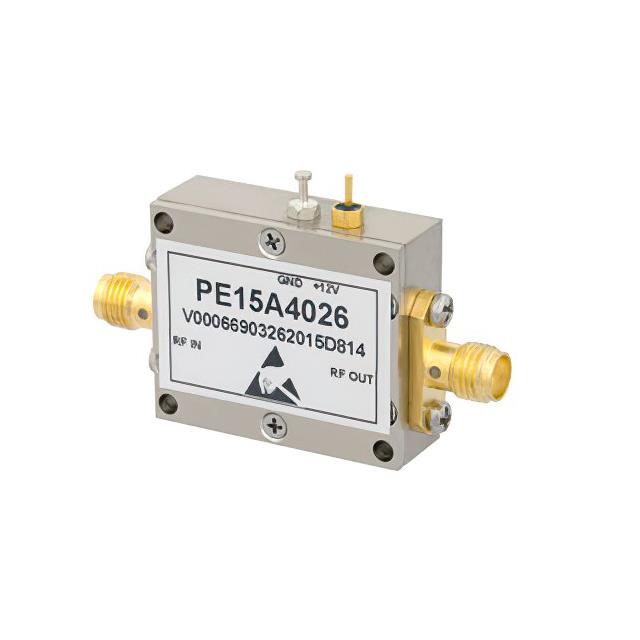

PE15A4026
ActivePasternack
1 WATT P1DB, 820 MHZ TO 960 MHZ,
PE15A4026
ActivePasternack
1 WATT P1DB, 820 MHZ TO 960 MHZ,
Description
General part information
PE15A4026
RF Amplifier IC Radar 820MHz ~ 960MHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A4026 |
|---|---|
| Current - Supply | 500 mA |
| Frequency (Max) | 960 MHz |
| Frequency (Min) | 820 MHz |
| Gain | 17 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 2 dB |
| P1dB | 30 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply (Maximum) | 12 V |
| Voltage - Supply (Minimum) | 8 V |
