MSW06A8-2S-SR
ActiveMilspecwest, LLC
CABLE PLUG, WITH STRAIN RELIEF C
MSW06A8-2S-SR
ActiveMilspecwest, LLC
CABLE PLUG, WITH STRAIN RELIEF C
Description
General part information
MSW06A8-2S-SR

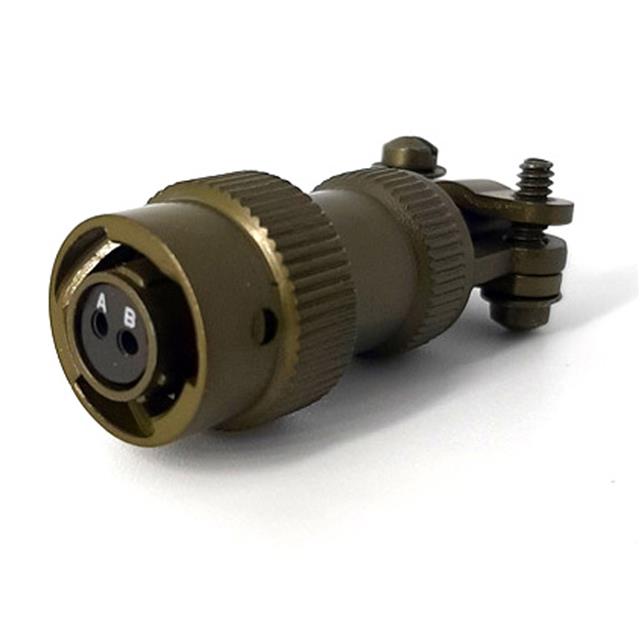

2 Position Circular Connector Plug, Female Sockets Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW06A8-2S-SR |
|---|---|
| Applications | Military |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Cadmium |
| Current Rating | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Finish | Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 8 mm |
| Shell Size - Insert Width | 2 mm |
| Termination | Solder |
| Voltage Rating | 800 V |
