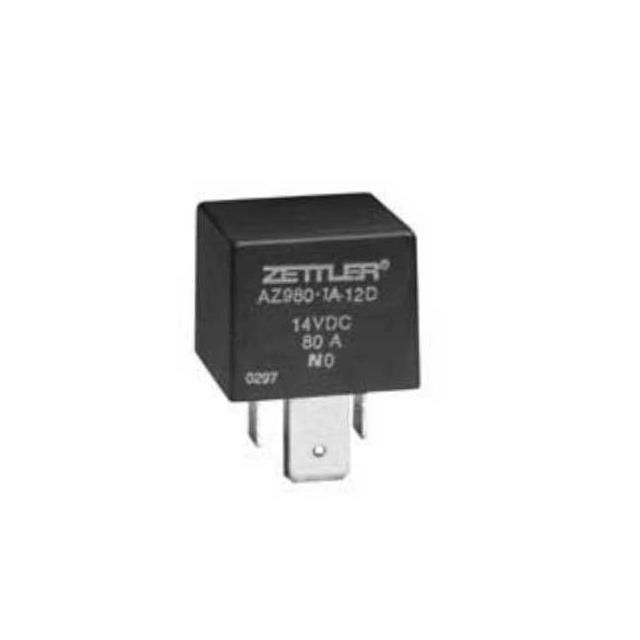

AZ980-1A-12DE

Active

American Zettler

RELAY AUTOMOTIVE SPST 80A 12V

Search across all available documentation for this part.

Active

American Zettler

RELAY AUTOMOTIVE SPST 80A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZ980-1A-12DE	AZ980 Series

Coil Current	133.3 mA	133.3 mA
Coil Power	1.6 W	1.6 W
Coil Resistance	90 Ohms	90 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A), SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	80 A	60 - 80 A
Features	Sealed - Epoxy, SUPER-ISO	Sealed - Epoxy, SUPER-ISO
Mounting Type	Socketable	Socketable
Must Operate Voltage	7.8 VDC	7.8 VDC
Must Release Voltage	1.2 VDC	1.2 VDC
Operate Time	7 ms	7 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	5 ms	5 ms
Switching Voltage	30 VDC	30 VDC
Termination Style	Plug In, Multiple Sizes, Quick Connect	Plug In, Multiple Sizes, Quick Connect

RELAY AUTOMOTIVE SPST 80A 12V

Part	Termination Style	Coil Voltage	Coil Resistance	Release Time	Switching Voltage	Contact Rating (Current)	Features	Coil Type	Contact Form	Must Release Voltage	Contact Material	Coil Power	Coil Current	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Must Operate Voltage	Mounting Type
American Zettler AZ980-1A-12DE	Multiple Sizes, Plug In, Quick Connect	12 VDC	90 Ohms	5 ms	30 VDC	80 A	Sealed - Epoxy, SUPER-ISO	Non Latching	SPST-NO (1 Form A)	1.2 VDC	Silver Tin Oxide (AgSnO)	1.6 W	133.3 mA	85 °C	-40 °C	7 ms	7.8 VDC	Socketable
American Zettler AZ980-1C-12DE	Multiple Sizes, Plug In, Quick Connect	12 VDC	90 Ohms	5 ms	30 VDC	60 A	Sealed - Epoxy, SUPER-ISO	Non Latching	SPDT (1 Form C)	1.2 VDC	Silver Tin Oxide (AgSnO)	1.6 W	133.3 mA	85 °C	-40 °C	7 ms	7.8 VDC	Socketable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPST 80A 12V
