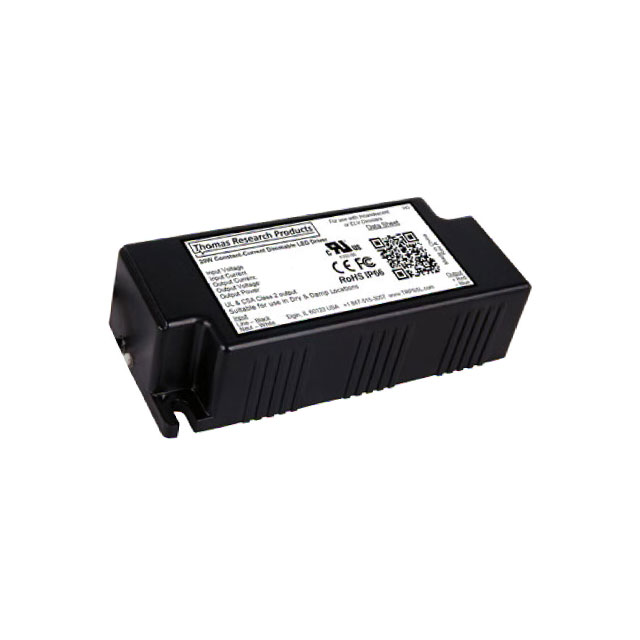

LED20W120-040-C0500-LT

Active

Thomas Research Products

LED DRIVER CC AC/DC 24-40V 500MA

Search across all available documentation for this part.

Active

Thomas Research Products

LED DRIVER CC AC/DC 24-40V 500MA

Technical Specifications

Parameters and characteristics commom to parts in this series

LED DRIVER CC AC/DC 34-57V 350MA

Part	Termination Style	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output (Max) [Max]	Ratings	Power (Watts)	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Dimming	Mounting Type	Topology	Approval Agency	Voltage - Input (Max) [Max] [custom]	Type	Number of Outputs	Weight	Weight	Efficiency	Features	Size / Dimension [y]	Size / Dimension [z]
Thomas Research Products LED20W120-057-C0350-LT	Wire Leads	57 V	34 V	350 mA	IP66	20 W	108 VAC	25 mm	95 mm	0.98 in	3.74 "	41 mm	1.61 "	ELV, TRIAC	Chassis Mount	AC DC Converter	CE, cURus	132 VAC	Constant Current	1	0.364 lb	165.11 g	85 %	OCP, OVP, SCP
Thomas Research Products LED20W120-040-C0500-LT	Wire Leads	40 V	24 V	500 mA	IP66	20 W	108 VAC		95 mm	0.98 in	3.74 "		1.6 "	ELV, TRIAC	Chassis Mount	AC DC Converter	CE, cURus	132 VAC	Constant Current	1			85 %	OCP, OVP, SCP	41 mm	25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 41.26

General part information

500mA 24 ~ 40V Constant Current LED Driver AC DC Converter Topology 1 Output
