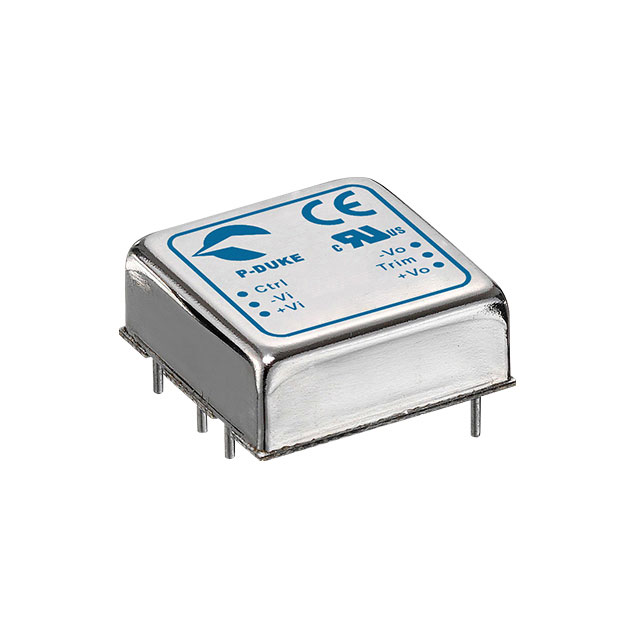

LCD15-24S05

Active

P-DUKE Technology

DC DC CONVERTER 5V 15W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 5V 15W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER +/-12V 15W

Part	Power (Watts)	Type	Control Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Mounting Type	Voltage - Isolation	Number of Outputs	Package / Case	Applications	Voltage - Input (Max) [Max]	Features	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current - Output (Max) [Max]	Current - Output (Max)
P-DUKE Technology LCD15-24D12	15 W	Isolated Module	Active Low, Enable	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	12 V	-12 V	625 mA	625 mA	Through Hole	1.6 kV	2	6-DIP Module	ITE (Commercial)	36 V	Remote On/Off	88 %	18 V	-40 °C	105 C	CB, CE, cURus
P-DUKE Technology LCD15-24S05W	15 W	Isolated Module	Active Low, Enable	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	5 V				Through Hole	1.6 kV	1	6-DIP Module	ITE (Commercial)	36 V	Remote On/Off	86 %	9 V	-40 °C	105 C	CB, CE, cURus	3 A
P-DUKE Technology LCD15-24S05	15 W	Isolated Module	Active Low, Enable	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	5 V				Through Hole	1.6 kV	1	6-DIP Module	ITE (Commercial)	36 V	Remote On/Off	88 %	18 V	-40 °C	105 C	CB, CE, cURus	3 A
P-DUKE Technology LCD15-24D15W	15 W	Isolated Module	Active Low, Enable	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	15 V	-15 V		500 mA	Through Hole	1.6 kV	2	6-DIP Module	ITE (Commercial)	36 V	Remote On/Off	88 %	9 V	-40 °C	105 C	CB, CE, cURus		500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 3A 18V - 36V Input
