Description
General part information
001591 Series

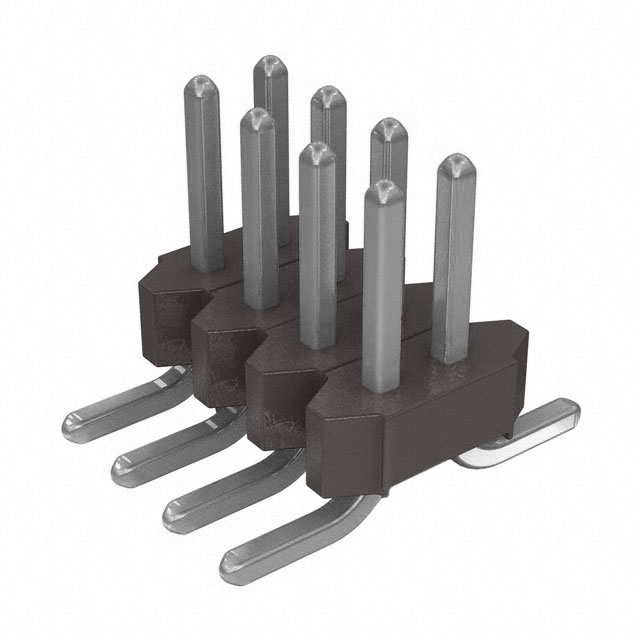

Connector Header Surface Mount 4 position 0.100" (2.54mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0015911044 |
|---|---|
| Applications | Medical, Lighting, Telecommunications, Automotive, General Purpose |
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 150 µin |
| Contact Finish Thickness - Post | 150 µin |
| Contact Length - Mating | 0.32 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.09 in |
| Insulation Material | Glass Filled, Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.1 in |
| Row Spacing - Mating | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board, Board or Cable |
| Termination | Solder |
