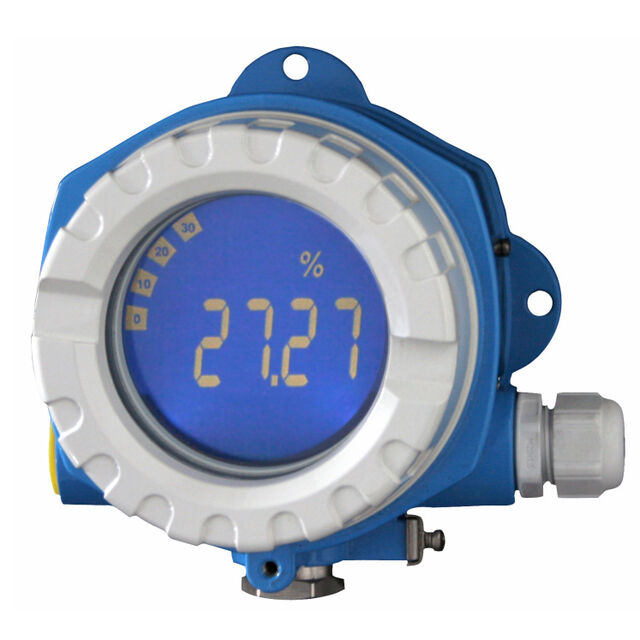

RIA14-BN3C
ActiveEndress+Hauser
FIELD INDICATOR 4-20MA
RIA14-BN3C
ActiveEndress+Hauser
FIELD INDICATOR 4-20MA
Description
General part information
RIA14-BN3C
Ammeter LCD - Black Characters, Backlight Display Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RIA14-BN3C |
|---|---|
| Display Characters - Height | 0.8 in |
| Display Type | LCD - Black Characters, Backlight |
| Ingress Protection Description | Waterproof, NEMA 4X, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Measuring Range (Max) | 0.02 mA |
| Measuring Range (Min) | 0.004 mA |
| Measuring Type | Current |
| Mounting Type | Chassis Mount |
| Number of Characters Per Row | 5 characters |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Digital, Solid State (2) |
| Panel Cutout Length | 121.92 mm |
| Panel Cutout Shape | Square |
| Panel Cutout Width | 121.92 mm |
| Termination Style | Screw Terminal, Wire Leads |
| Type | Process Meter, Ammeter |
| Voltage - Supply | Loop Power |
| Voltage - Supply Type | Loop Power |
