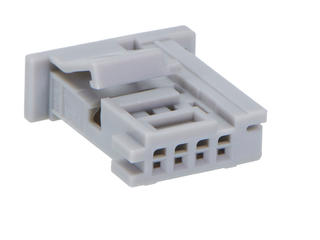

Specification	2058272042

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.071 in

205827 Series

Part	Color	Mounting Type	Insulation Material	Number of Rows	Connector Type	Contact Type	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Contact Termination	Pitch	Fastening Type

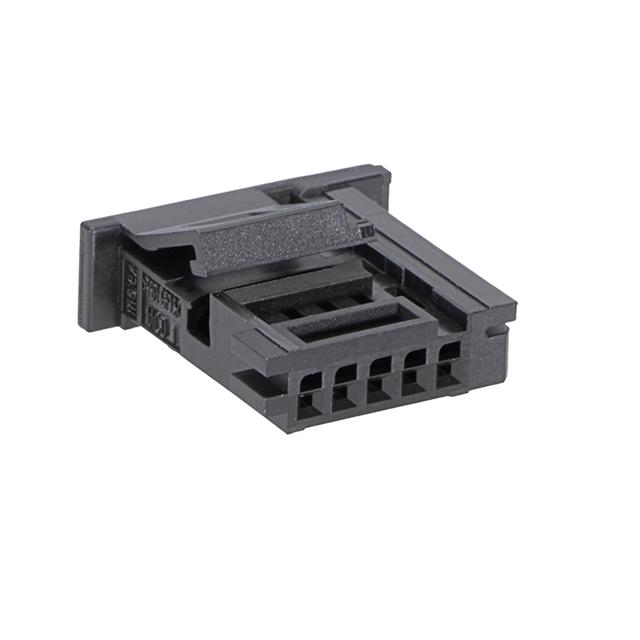

Molex 2058272051	Black	Free Hanging (In-Line)	Glass Filled Polybutylene Terephthalate (PBT)	1	Receptacle	Female Socket	5	-40 °C	105 °C	Crimp	0.071 in	Latch Lock
Molex 2058272062	Natural	Free Hanging (In-Line)	Glass Filled Polybutylene Terephthalate (PBT)	1	Receptacle	Female Socket	6	-40 °C	105 °C	Crimp	0.071 in	Latch Lock

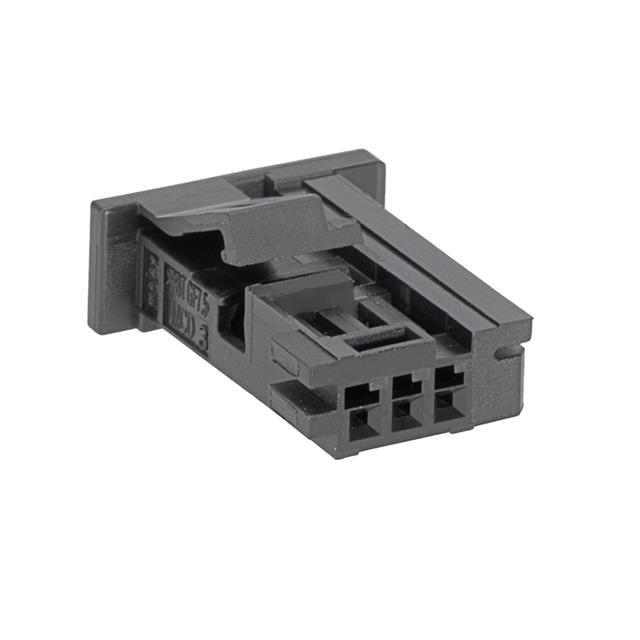

Molex 2058272031	Black	Free Hanging (In-Line)	Glass Filled Polybutylene Terephthalate (PBT)	1	Receptacle	Female Socket	3	-40 °C	105 °C	Crimp	0.071 in	Latch Lock
Molex 2058272043	Blue	Free Hanging (In-Line)	Glass Filled Polybutylene Terephthalate (PBT)	1	Receptacle	Female Socket	4	-40 °C	105 °C	Crimp	0.071 in	Latch Lock

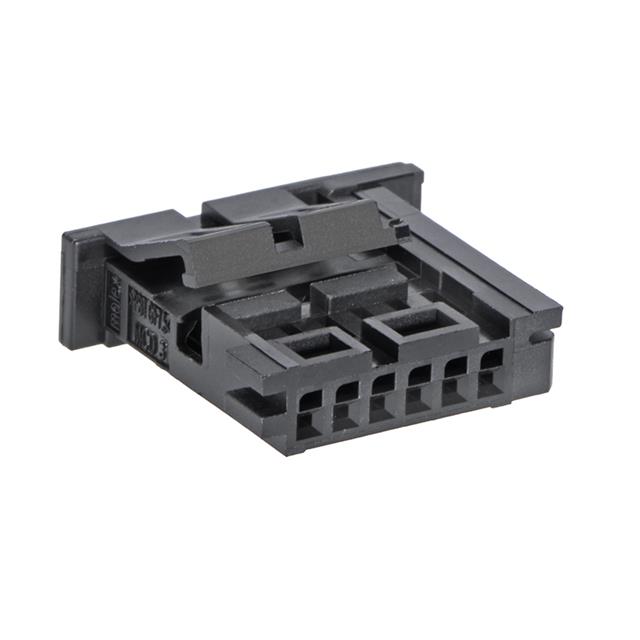

Molex 2058272061	Black	Free Hanging (In-Line)	Glass Filled Polybutylene Terephthalate (PBT)	1	Receptacle	Female Socket	6	-40 °C	105 °C	Crimp	0.071 in	Latch Lock
Molex 2058272023	Blue	Free Hanging (In-Line)	Glass Filled Polybutylene Terephthalate (PBT)	1	Receptacle	Female Socket	2	-40 °C	105 °C	Crimp	0.071 in	Latch Lock
Molex 2058272021	Black	Free Hanging (In-Line)	Glass Filled Polybutylene Terephthalate (PBT)	1	Receptacle	Female Socket	2	-40 °C	105 °C	Crimp	0.071 in	Latch Lock
Molex 2058272053	Blue	Free Hanging (In-Line)	Glass Filled Polybutylene Terephthalate (PBT)	1	Receptacle	Female Socket	5	-40 °C	105 °C	Crimp	0.071 in	Latch Lock
Molex 2058272041	Black	Free Hanging (In-Line)	Glass Filled Polybutylene Terephthalate (PBT)	1	Receptacle	Female Socket	4	-40 °C	105 °C	Crimp	0.071 in	Latch Lock

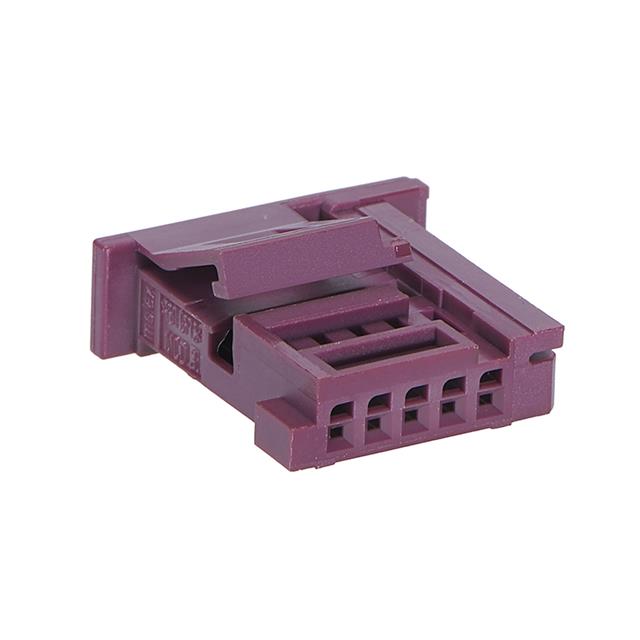

Molex 2058272054	Violet	Free Hanging (In-Line)	Glass Filled Polybutylene Terephthalate (PBT)	1	Receptacle	Female Socket	5	-40 °C	105 °C	Crimp	0.071 in	Latch Lock
