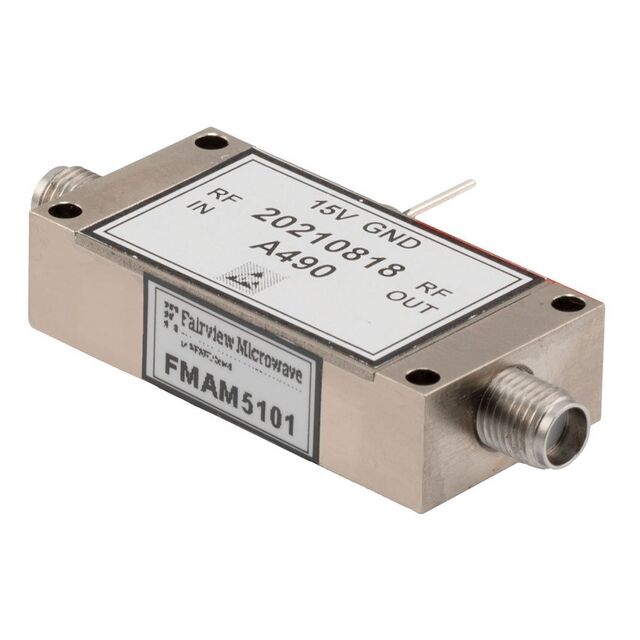

FMAM5101
ActiveFairview Microwave
TEMP COMP AMP SMA 0.5-4 GHZ 21DB
FMAM5101
ActiveFairview Microwave
TEMP COMP AMP SMA 0.5-4 GHZ 21DB
Description
General part information
FMAM5101
RF Amplifier IC General Purpose 500MHz ~ 4GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM5101 |
|---|---|
| Current - Supply | 350 mA |
| Frequency (Max) | 4 GHz |
| Frequency (Min) | 500 MHz |
| Gain | 47 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 4 dB |
| P1dB | 21 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 12 VDC |
