PT-SAS-SL8-8S-075

Active

Pactech

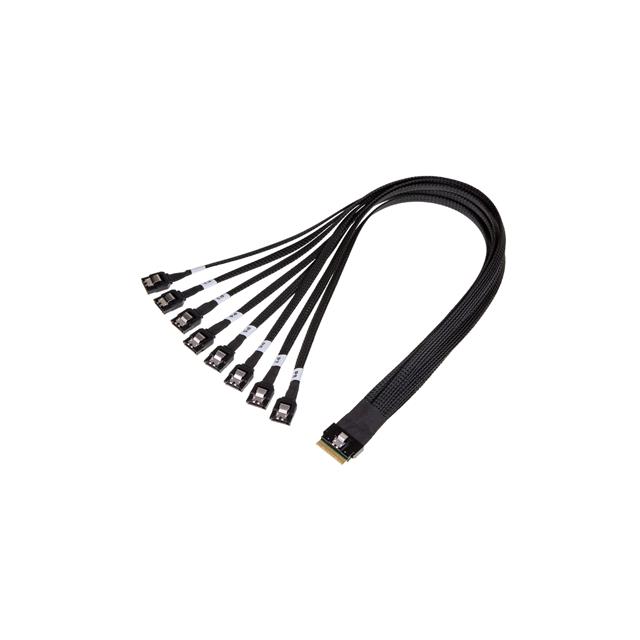

SLIMSAS 8I STR TO 8X SATA 0.75M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PT-SAS-SL8-8S-075

Active

Pactech

SLIMSAS 8I STR TO 8X SATA 0.75M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PT-SAS-SL8-8S-075	PT-SAS-SL8 Series

Cable Connectors	SlimSAS SFF-8654 8i, SATA (8)	SlimSAS SFF-8654 8i, OCulink SFF 8611 4i, SATA(4), SlimSAS SFF-8654 8i, SATA (8), SlimSAS SFF-8654 4i (2), miniSAS HD 4i
Cable Type	Round	Round, Flat, Round, Twin Axial
Color	Black	Black, Black, Multiple
Connector Type	Plug to Receptacle (8)	Plug to Plug (2), Plug to Plug, Plug to Receptacle, Plug to Receptacle (8), SlimSAS SFF-8654 8i to SFF-8639 and Male Power Connector
Fastening Type	Latch Lock	Latch Lock
Features	RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654, 8Gbps PCI-e Gen3	Raid friendly for Broadcom MegaRAID 9560-8i, 24Gbps SAS 4.0, DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, 12Gbps SAS 3.0, 8Gbps PCI-e Gen3
Frequency - Max [Max]	8 Gbps	8 - 24 Gbps
Gender	Male to Female (8)	Male to Male (2), Male to Male, Male to Female, Male to Female (8)
Length	-	9.843 in
Length	-	600 mm
Length	-	1.96 ft
Length [x]	0.75 m	0.75 - 700 mm
Length [x]	2.46 ft	1.64 - 9.84 in
Number of Positions	7, 74	7 - 74
Number of Positions	8	8
Number of Positions	-	38 (2)
Shielding	Shielded	Shielded
Usage	Internal	Internal
Wire Gauge	30 AWG	30 - 32 AWG

PT-SAS-SL8 Series

SLIMSAS 8I TO 2XOCULINK 4I 0.25M

Part	Fastening Type	Cable Type	Usage	Wire Gauge	Cable Connectors	Shielding	Gender	Color	Features	Length [x]	Length [x]	Length [x]	Number of Positions	Frequency - Max [Max]	Connector Type	Number of Positions	Number of Positions
Pactech PT-SAS-SL8-OCUX2-4.0-250	Latch Lock	Round	Internal	32 AWG	OCulink SFF 8611 4i, SlimSAS SFF-8654 8i	Shielded	Male to Male (2)	Black	24Gbps SAS 4.0, DELL PowerEdge RAID Controller H745, Raid friendly for Broadcom MegaRAID 9560-8i, SlimSAS SFF-8654	250 mm	9.84 in	9.843 in	42, 74	16 Gbps	Plug to Plug (2)
Pactech PT-SAS-SL8-RA-250	Latch Lock	Flat	Internal	30 AWG	SlimSAS SFF-8654 8i	Shielded	Male to Male	Black	12Gbps SAS 3.0, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654	250 mm	9.84 in	9.843 in	74	12 Gbps	Plug to Plug
Pactech PT-SAS-SL8-4S-500	Latch Lock	Flat	Internal	30 AWG	SATA(4), SlimSAS SFF-8654 8i	Shielded	Male to Female	Black	8Gbps PCI-e Gen3, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654	500 mm	1.64 ft		7, 74	8 Gbps	Plug to Receptacle
Pactech PT-SAS-SL8-8S-100	Latch Lock	Round	Internal	30 AWG	SlimSAS SFF-8654 8i, SATA (8)	Shielded	Male to Female (8)	Black	8Gbps PCI-e Gen3, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654	1 m	3.28 ft		7, 74	8 Gbps	Plug to Receptacle (8)	8
Pactech PT-SAS-SL8-SL4X2-050	Latch Lock	Flat	Internal	30 AWG	SlimSAS SFF-8654 4i (2), SlimSAS SFF-8654 8i	Shielded	Male to Male	Black	12Gbps SAS 3.0, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654	500 mm	1.64 ft		74	16 Gbps	Plug to Plug		38 (2)
Pactech PT-SAS-SL8-43X2-700	Latch Lock	Flat	Internal	32 AWG	miniSAS HD 4i, SlimSAS SFF-8654 8i	Shielded	Male to Male	Black	8Gbps PCI-e Gen3, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654	700 mm	2.3 ft		36, 74	16 Gbps	Plug to Plug
Pactech PT-SAS-SL8-OCUX2-4.0-1000	Latch Lock	Round	Internal	32 AWG	OCulink SFF 8611 4i, SlimSAS SFF-8654 8i	Shielded	Male to Male (2)	Black	24Gbps SAS 4.0, DELL PowerEdge RAID Controller H745, Raid friendly for Broadcom MegaRAID 9560-8i, SlimSAS SFF-8654	1 m	3.28 ft		42, 74	16 Gbps	Plug to Plug (2)
Pactech PT-SAS-SL8-LSE-LP-050	Latch Lock	Flat	Internal		SlimSAS SFF-8654 8i	Shielded	Male to Male	Black	12Gbps SAS 3.0, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654	500 mm	1.64 ft		74		Plug to Plug
Pactech PT-SAS-SL8-SL4X2-1000	Latch Lock	Flat	Internal	30 AWG	SlimSAS SFF-8654 4i (2), SlimSAS SFF-8654 8i	Shielded	Male to Male	Black	12Gbps SAS 3.0, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654	1 m	3.28 ft		74	16 Gbps	Plug to Plug		38 (2)
Pactech PT-SAS-SL8-LSE-LP-075	Latch Lock	Flat	Internal		SlimSAS SFF-8654 8i	Shielded	Male to Male	Black	12Gbps SAS 3.0, RAID friendly for Broadcom MegaRAID 9560-8i and DELL PowerEdge RAID Controller H745, SlimSAS SFF-8654	0.75 m	2.46 ft		74		Plug to Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 63.10
		100	$ 56.79

Description

General part information

PT-SAS-SL8 Series

74, 7 (8) Position SlimSAS SFF-8654 8i, SATA (8) Plug to Receptacle (8) 2.46' (750.00mm) Black Shielded
