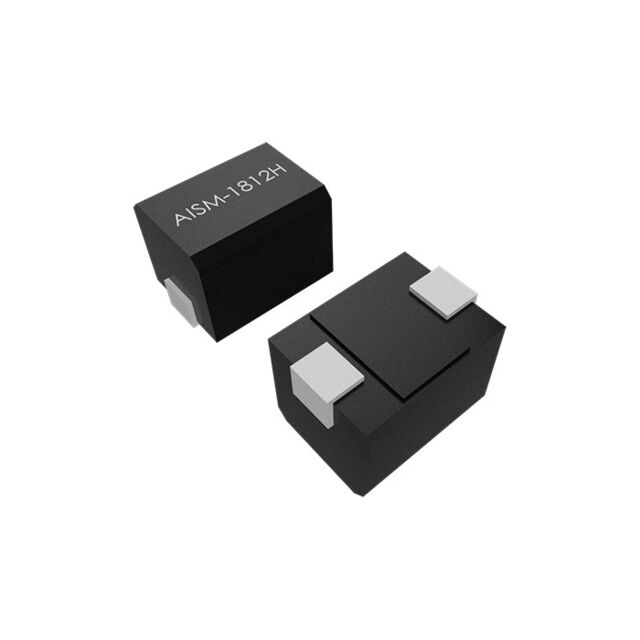

AISM-1812H-100K-T
ActiveAbracon LLC
INDUCTOR MOLDED WOUND SMD
AISM-1812H-100K-T
ActiveAbracon LLC
INDUCTOR MOLDED WOUND SMD
Description
General part information
AISM-1812H-100K-T
10 µH Shielded Wirewound Inductor 550 mA 500mOhm Max 1812 (4532 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | AISM-1812H-100K-T |
|---|---|
| Current Rating | 0.55 A |
| DC Resistance (DCR) (Max) | 500 mOhm |
| Frequency - Self Resonant | 22 MHz |
| Height - Seated (Max) | 0.134 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 2.52 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1812 (4532 Metric) |
| Package Name | 1812 |
| Q | 10 |
| Shielding | Shielded |
| Size / Dimension Length | 0.165 in |
| Size / Dimension Width | 0.126 in |
| Tolerance | 10 % |
| Type | Wirewound |
