General part information

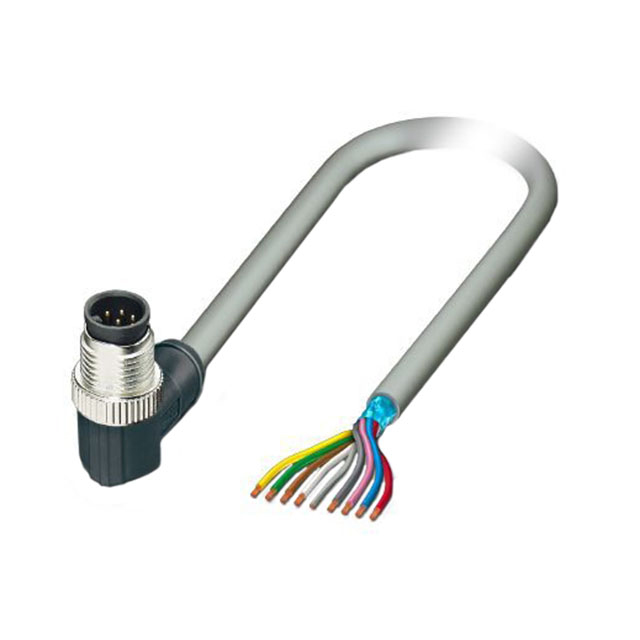

Sensor Cables / Actuator Cables SAC5P 5,0680/M12FR FDN
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1095784 | M12 Sensor Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins, Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 8 positions | 3 - 8 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Plug, Right Angle | Plug, Right Angle, Receptacle, Plug, Receptacle, Right Angle |
| 2nd Connector Gender | - | Female Sockets |
| 2nd Connector Mounting Type | - | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | - | 4 - 8 |
| 2nd Connector Number of Positions Loaded | - | All |
| 2nd Connector Shell Size - Insert | - | M12 |
| 2nd Connector Type | Wire Leads | Wire Leads, Receptacle |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyvinyl Chloride (PVC) | Polyvinyl Chloride (PVC) |
| Cable Type | Round | Round |
| Color | Gray | Gray |
| Ingress Protection | IP65, IP68, IP67 | IP65, IP68, IP67 |
| Length | - | 4.92 - 131.2 ft |
| Length | - | 1.5 - 40 m |
| Length [x] | 2 m | 2 - 500 m |
| Length [x] | 6.56 ft | 1.64 - 49.2 ft |
| Shielding | Shielded | Shielded |
Sensor Cables / Actuator Cables SAC5P 5,0680/M12FR FDN
| Part | 1st Connector Shell Size - Insert | Cable Type | Assembly Configuration | 1st Connector Orientation | Ingress Protection | Shielding | 1st Connector Gender | 1st Connector Type | 2nd Connector Type | 1st Connector Number of Positions Loaded | 1st Connector Mounting Type | 1st Connector Number of Positions | Color | Cable Material | Length [x] | Length [x] | 2nd Connector Shell Size - Insert | 2nd Connector Gender | 2nd Connector Mounting Type | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1095909 | M12 | Round | Standard | A | IP65, IP67, IP68 | Shielded | Male Pins | Plug, Right Angle | Wire Leads | All | Free Hanging (In-Line) | 4 | Gray | Polyvinyl Chloride (PVC) | |||||||||
Phoenix Contact 1096025 | M12 | Round | Standard | A | IP65, IP67, IP68 | Shielded | Female Sockets | Receptacle | Wire Leads | All | Free Hanging (In-Line) | 4 | Gray | Polyvinyl Chloride (PVC) | 15 m | 49.2 ft | |||||||
Phoenix Contact 1095841 | M12 | Round | Standard | A | IP65, IP67, IP68 | Shielded | Male Pins | Plug, Right Angle | Wire Leads | All | Free Hanging (In-Line) | 4 | Gray | Polyvinyl Chloride (PVC) | |||||||||
Phoenix Contact 1095857 | M12 | Round | Standard | A | IP65, IP67, IP68 | Shielded | Male Pins | Plug | Wire Leads | All | Free Hanging (In-Line) | 4 | Gray | Polyvinyl Chloride (PVC) | 2 m | 6.56 ft | |||||||
Phoenix Contact 1095815 | M12 | Round | Standard | A | IP65, IP67, IP68 | Shielded | Female Sockets | Receptacle, Right Angle | Wire Leads | All | Free Hanging (In-Line) | 5 | Gray | Polyvinyl Chloride (PVC) | 15 m | 49.2 ft | |||||||
Phoenix Contact 1095845 | M12 | Round | Standard | A | IP65, IP67, IP68 | Shielded | Male Pins | Plug | Receptacle | All | Free Hanging (In-Line) | 8 positions | Gray | Polyvinyl Chloride (PVC) | M12 | Female Sockets | Free Hanging (In-Line) | 8 | All | ||||
Phoenix Contact 1095893 | M12 | Round | Standard | A | IP65, IP67, IP68 | Shielded | Male Pins | Plug | Receptacle | All | Free Hanging (In-Line) | 4 | Gray | Polyvinyl Chloride (PVC) | M12 | Female Sockets | Free Hanging (In-Line) | 4 | All | ||||
Phoenix Contact 1095809 | M12 | Round | Standard | A | IP65, IP67, IP68 | Shielded | Male Pins | Plug | Receptacle | All | Free Hanging (In-Line) | 8 positions | Gray | Polyvinyl Chloride (PVC) | 3 m | 9.84 ft | M12 | Female Sockets | Free Hanging (In-Line) | 8 | All | ||
Phoenix Contact 1095803 | M12 | Round | Standard | A | IP65, IP67, IP68 | Shielded | Male Pins | Plug | Receptacle | All | Free Hanging (In-Line) | 8 positions | Gray | Polyvinyl Chloride (PVC) | 15 m | 49.2 ft | M12 | Female Sockets | Free Hanging (In-Line) | 8 | All | ||
Phoenix Contact 1096017 | M12 | Round | Standard | A | IP65, IP67, IP68 | Shielded | Female Sockets | Receptacle, Right Angle | Wire Leads | All | Free Hanging (In-Line) | 4 | Gray | Polyvinyl Chloride (PVC) | 131.2 ft | 40 m |
