XL25D-TO247-22-17-1
Activet-Global Technology

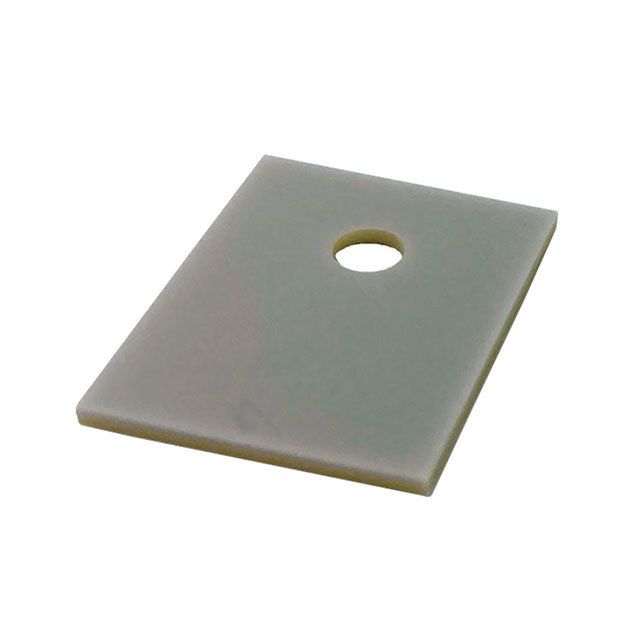

CERAMIC HEAT SPREADER 22X17X1MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XL25D-TO247-22-17-1
Activet-Global Technology
CERAMIC HEAT SPREADER 22X17X1MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XL25D-TO247-22-17-1 | XL25D Series |
|---|---|---|
| Attachment Method | Thermal Tape | Thermal Tape |
| Fin Height [z] | 0.039 in | 0.039 in |
| Fin Height [z] | 1 mm | 1 mm |
| Length | 0.866 " | 0.866 - 1.102 in |
| Length | 22 mm | 22 - 28 mm |
| Length | - | 0.787 " |
| Length | - | 20 mm |
| Material | Ceramic | Ceramic |
| Package Cooled | TO-247 | TO-220, TO-3P, TO-264, TO-247 |
| Shape | Rectangular | Rectangular |
| Shelf Life | 60 Months | 60 Months |
| Type | Heat Spreader | Heat Spreader |
| Width | - | 0.551 in |
| Width | - | 14 mm |
| Width | - | 20 mm |
| Width | - | 0.787 in |
| Width [x] | 0.669 in | 0.669 - 0.866 " |
| Width [x] | 17 mm | 17 - 22 mm |
XL25D Series
CERAMIC HEAT SPREADER 20X14X0.63
| Part | Material | Shelf Life | Width | Width | Length [x] | Length [x] | Shape | Type | Package Cooled | Attachment Method | Length | Length | Width [y] | Width [y] | Fin Height [z] | Fin Height [z] | Width [x] | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology XL25D-TO220-20-14-0.64 | Ceramic | 60 Months | 0.551 in | 14 mm | 0.787 " | 20 mm | Rectangular | Heat Spreader | TO-220 | Thermal Tape | ||||||||
t-Global Technology XL25D-TO3P-25-20-0.64 | Ceramic | 60 Months | Rectangular | Heat Spreader | TO-3P | Thermal Tape | 25 mm | 0.984 in | 20 mm | 0.787 in | ||||||||
t-Global Technology XL25D-TO264-28-22-1 | Ceramic | 60 Months | Rectangular | Heat Spreader | TO-264 | Thermal Tape | 28 mm | 1.102 in | 0.039 in | 1 mm | 22 mm | 0.866 " | ||||||
t-Global Technology XL25D-TO247-22-17-1 | Ceramic | 60 Months | Rectangular | Heat Spreader | TO-247 | Thermal Tape | 22 mm | 0.866 " | 0.039 in | 1 mm | 17 mm | 0.669 in | ||||||
t-Global Technology XL25D-TO264-28-22-0.64 | Ceramic | 60 Months | Rectangular | Heat Spreader | TO-264 | Thermal Tape | 28 mm | 1.102 in | 22 mm | 0.866 " | ||||||||
t-Global Technology XL25D-TO3P-25-20-1 | Ceramic | 60 Months | Rectangular | Heat Spreader | TO-3P | Thermal Tape | 25 mm | 0.984 in | 20 mm | 0.787 in | 0.039 in | 1 mm | ||||||
t-Global Technology XL25D-TO247-22-17-0.64 | Ceramic | 60 Months | Rectangular | Heat Spreader | TO-247 | Thermal Tape | 22 mm | 0.866 " | 17 mm | 0.669 in | ||||||||
t-Global Technology XL25D-TO220-20-14-1 | Ceramic | 0.551 in | 14 mm | 0.787 " | 20 mm | Rectangular | Heat Spreader | TO-220 | Thermal Tape | 0.039 in | 1 mm | |||||||
t-Global Technology XL25D-TO220-18.5-12-1 | Ceramic | 0.787 " | 20 mm | Rectangular | Heat Spreader | TO-220 | Thermal Tape | 0.039 in | 1 mm | 18.5 mm | 0.728 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.07 | |
| 10 | $ 3.96 | |||
| 100 | $ 3.42 | |||
| 1000 | $ 2.78 | |||
Description
General part information
XL25D Series
Heat Sink TO-247 Ceramic Heat Spreader
