1267 X 1"

Active

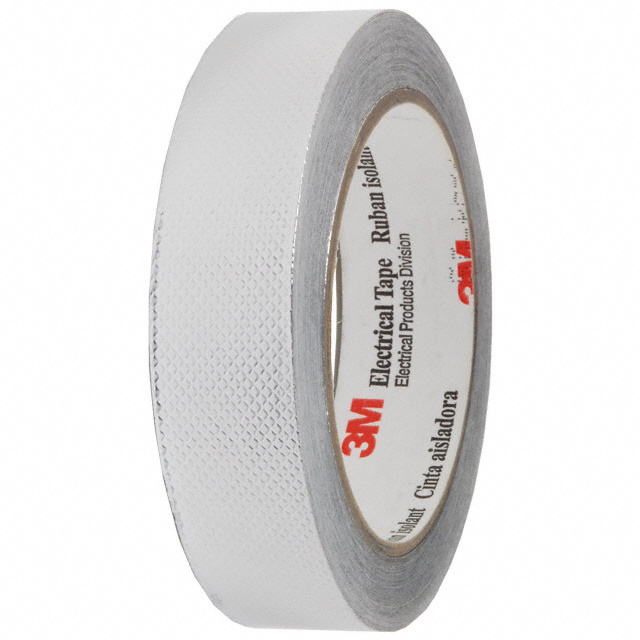

RF EMI SHIELDING TAPE 54' X 1"

Search across all available documentation for this part.

Active

RF EMI SHIELDING TAPE 54' X 1"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1267 X 1"	1267 Series

Adhesive	Single Sided, Non-Conductive	Single Sided, Non-Conductive, Acrylic
Backing, Carrier	-	Aluminum Foil
Color	-	Silver
Length	91.44 cm, 16.5 m	16.5 - 91.44 m
Length	54 ft	54 ft
Length	-	25.4 cm
Length [x]	36 "	10 - 36 in
Material	Embossed Aluminum Foil	Embossed Aluminum Foil
Shelf Life	-	60 Months
Shelf Life Start	-	Date of Manufacture
Storage/Refrigeration Temperature	-	27 °C
Storage/Refrigeration Temperature	-	81 °F
Storage/Refrigeration Temperature	-	10 °C
Storage/Refrigeration Temperature	-	10 °C
Tape Type	-	EMI Shielding
Thickness	-	0.0067 "
Thickness	-	0.17 mm
Thickness	-	6.7 mils
Thickness - Adhesive	-	0.119 mm
Thickness - Adhesive	-	0.0047 "
Thickness - Adhesive	-	4.7 mils
Thickness - Backing, Carrier	-	0.002 "
Thickness - Backing, Carrier	-	0.051 mm
Thickness - Backing, Carrier	-	2 mils
Thickness - Overall [z]	0.13 mm	0.13 mm
Thickness - Overall [z]	0.005 in	0.005 in
Type	Shielding Sheet, Shielding Tape	Shielding Tape, Shielding Sheet
Width	25.4 mm	19.1 - 25.4 mm
Width	-	0.75 in
Width	-	195.58 mm
Width [x]	1 in	1 - 7.7 in

RF EMI SHIELDING TAPE 54'X0.75"

Part	Type	Thickness - Overall [z]	Thickness - Overall [z]	Shelf Life	Adhesive	Length	Length	Shelf Life Start	Material	Width	Width	Length [x]	Length [x]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]	Backing, Carrier	Color	Thickness	Thickness	Thickness	Tape Type	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]
3M 1267-3/4"X18YD	Shielding Tape	0.13 mm	0.005 in	60 Months	Non-Conductive, Single Sided	16.5 m	54 ft	Date of Manufacture	Embossed Aluminum Foil	0.75 in	19.1 mm
3M 1267-1/2"X18YD	Shielding Tape	0.13 mm	0.005 in		Non-Conductive, Single Sided	16.5 m	54 ft		Embossed Aluminum Foil
3M 1267-7.7"X10"				60 Months	Acrylic			Date of Manufacture				10 in	25.4 cm	0.119 mm	0.0047 "	4.7 mils	0.002 "	0.051 mm	2 mils	195.58 mm	7.7 in	Aluminum Foil	Silver	0.0067 "	0.17 mm	6.7 mils	EMI Shielding	27 °C	81 °F	10 °C	10 °C
3M 1267 X 1"	Shielding Sheet, Shielding Tape	0.13 mm	0.005 in		Non-Conductive, Single Sided	16.5 m, 91.44 cm	54 ft		Embossed Aluminum Foil		25.4 mm	36 "									1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Tape 1267 Embossed Aluminum Foil Non-Conductive, Single Sided 1.000" (25.40mm) X 54.000' (16.50m) X 0.005" (0.13mm)
