12002400

Active

Bopla Enclosures

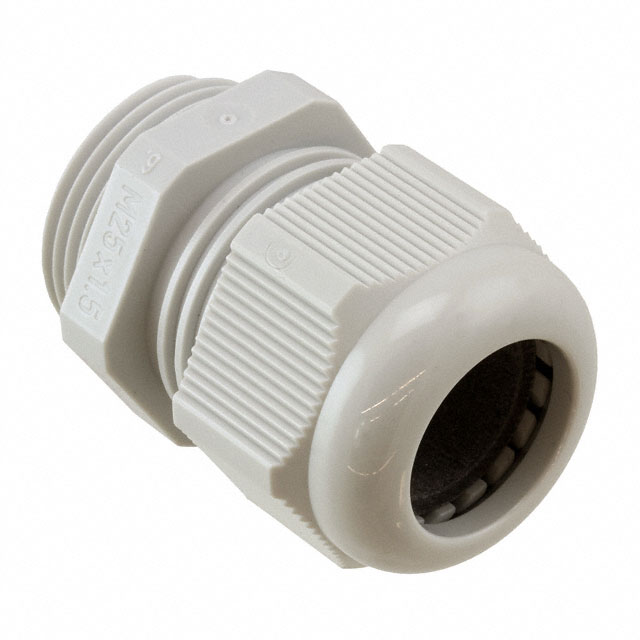

CABLE GLAND 11-16.99MM M25

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

12002400

Active

Bopla Enclosures

CABLE GLAND 11-16.99MM M25

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 4.19
		10	$ 3.20
		25	$ 2.88
		50	$ 2.67
		100	$ 2.47
		300	$ 2.20
		500	$ 2.09
		1000	$ 1.95
		2500	$ 1.78

Description

General part information

12002 Series

Cable Gland Polyamide (PA), Nylon M25x1.5 Gray

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12002400	12002 Series

Color	Gray	Gray
Includes	-	Strain Relief
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	-	14 mm
Outside Cable Diameter (Max)	-	0.551 "
Outside Cable Diameter (Max)	-	28 mm
Outside Cable Diameter (Max) [Max] [diameter]	16.99 mm	6 - 21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.669 in	0.236 - 1.102 in
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min)	-	5 mm
Outside Cable Diameter (Min)	-	0.197 in
Outside Cable Diameter (Min) [Min] [diameter]	0.433 in	0.118 - 0.748 in
Outside Cable Diameter (Min) [Min] [diameter]	11 mm	3 - 19 mm
Thread Length	8 mm	8 - 10 mm
Thread Length	0.315 in	0.315 - 0.394 in
Thread Size	M25x1.5	M20x1.5, M25x1.5, M32x1.5, M16x1.5, M40x1.5, M12x1.5
Type	Cable Gland	Cable Gland

12002 Series

CABLE GLAND 10-14MM M20 POLYAMID

Part	Includes	Material	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Ingress Protection	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Max) [Max] [diameter]
Bopla Enclosures 12002306	Strain Relief	Polyamide (PA), Nylon	Gray	14 mm	0.551 "	100 °C	-20 C	8 mm	0.315 in	IP68 - Dust Tight, Waterproof	0.394 in	10 mm	Cable Gland	M20x1.5
Bopla Enclosures 12002401	Strain Relief	Polyamide (PA), Nylon	Gray			100 °C	-20 C	8 mm	0.315 in	IP68 - Dust Tight, Waterproof	0.512 in		Cable Gland	M25x1.5	0.709 in	18.01 mm	13 mm
Bopla Enclosures 12002300		Polyamide (PA), Nylon	Gray			100 °C	-20 C	8 mm	0.315 in	IP68 - Dust Tight, Waterproof	0.315 in	8 mm	Cable Gland	M20x1.5	0.512 in	13 mm
Bopla Enclosures 12002500		Polyamide (PA), Nylon	Gray			100 °C	-20 C	10 mm	0.394 in	IP68 - Dust Tight, Waterproof	0.591 "	15 mm	Cable Gland	M32x1.5	0.827 in	21 mm
Bopla Enclosures 12002200		Polyamide (PA), Nylon	Gray			100 °C	-20 C	8 mm	0.315 in	IP68 - Dust Tight, Waterproof			Cable Gland	M16x1.5	0.394 "	10 mm		5 mm	0.197 in
Bopla Enclosures 12002600		Polyamide (PA), Nylon	Gray			100 °C	-20 C	10 mm	0.394 in	IP68 - Dust Tight, Waterproof	0.748 in	19 mm	Cable Gland	M40x1.5	1.102 in					28 mm
Bopla Enclosures 12002400		Polyamide (PA), Nylon	Gray			100 °C	-20 C	8 mm	0.315 in	IP68 - Dust Tight, Waterproof	0.433 in	11 mm	Cable Gland	M25x1.5	0.669 in	16.99 mm
Bopla Enclosures 12002210	Strain Relief	Polyamide (PA), Nylon	Gray			100 °C	-20 C	8 mm	0.315 in	IP68 - Dust Tight, Waterproof			Cable Gland	M16x1.5	0.394 "	10 mm		5 mm	0.197 in
Bopla Enclosures 12002103	Strain Relief	Polyamide (PA), Nylon	Gray			100 °C	-20 C	8 mm	0.315 in	IP68 - Dust Tight, Waterproof	0.118 in	3 mm	Cable Gland	M12x1.5	0.256 "	6.5 mm
Bopla Enclosures 12002100		Polyamide (PA), Nylon	Gray			100 °C	-20 C	8 mm	0.315 in	IP68 - Dust Tight, Waterproof	0.118 in	3 mm	Cable Gland	M12x1.5	0.236 in	6 mm
