PL20-5

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 50 OHM SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

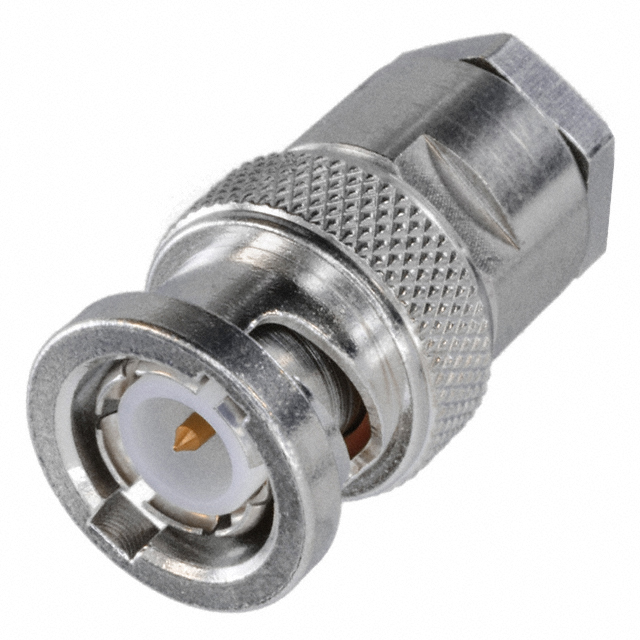

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	PL20-5	PL20 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	RG-174	RG-174, RG-59, RG-196, RG-223
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Wrench Clamp	Wrench Clamp
Voltage Rating	500 V	500 V

CONN BNC PLUG STR 50 OHM SOLDER

Part	Shield Termination	Body Finish	Housing Color	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Impedance	Body Material	Center Contact Plating	Voltage Rating	Fastening Type	Frequency - Max [Max]	Number of Ports	Mounting Type	Cable Group	Connector Type	Contact Termination
Cinch Connectivity Solutions Trompeter PL20-5	Wrench Clamp	Nickel	Silver	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	BNC	50 Ohms	Brass	Gold	500 V	Bayonet Lock	4 GHz	1	Free Hanging (In-Line)	RG-174	Male Pin, Plug	Solder
Cinch Connectivity Solutions Trompeter PL20-2	Wrench Clamp	Nickel	Silver	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	BNC	50 Ohms	Brass	Gold	500 V	Bayonet Lock	4 GHz	1	Free Hanging (In-Line)	RG-59	Male Pin, Plug	Solder
Cinch Connectivity Solutions Trompeter PL20-5A	Wrench Clamp	Nickel	Silver	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	BNC	50 Ohms	Brass	Gold	500 V	Bayonet Lock	4 GHz	1	Free Hanging (In-Line)	RG-196	Male Pin, Plug	Solder
Cinch Connectivity Solutions Trompeter PL20-3	Wrench Clamp	Nickel	Silver	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	BNC	50 Ohms	Brass	Gold	500 V	Bayonet Lock	4 GHz	1	Free Hanging (In-Line)	RG-223	Male Pin, Plug	Solder
