34114-4
ActiveTE Connectivity AMP Connectors
SOLIS R HR 22-16 5/16 NIPL
34114-4
ActiveTE Connectivity AMP Connectors
SOLIS R HR 22-16 5/16 NIPL
Description
General part information
34114-4

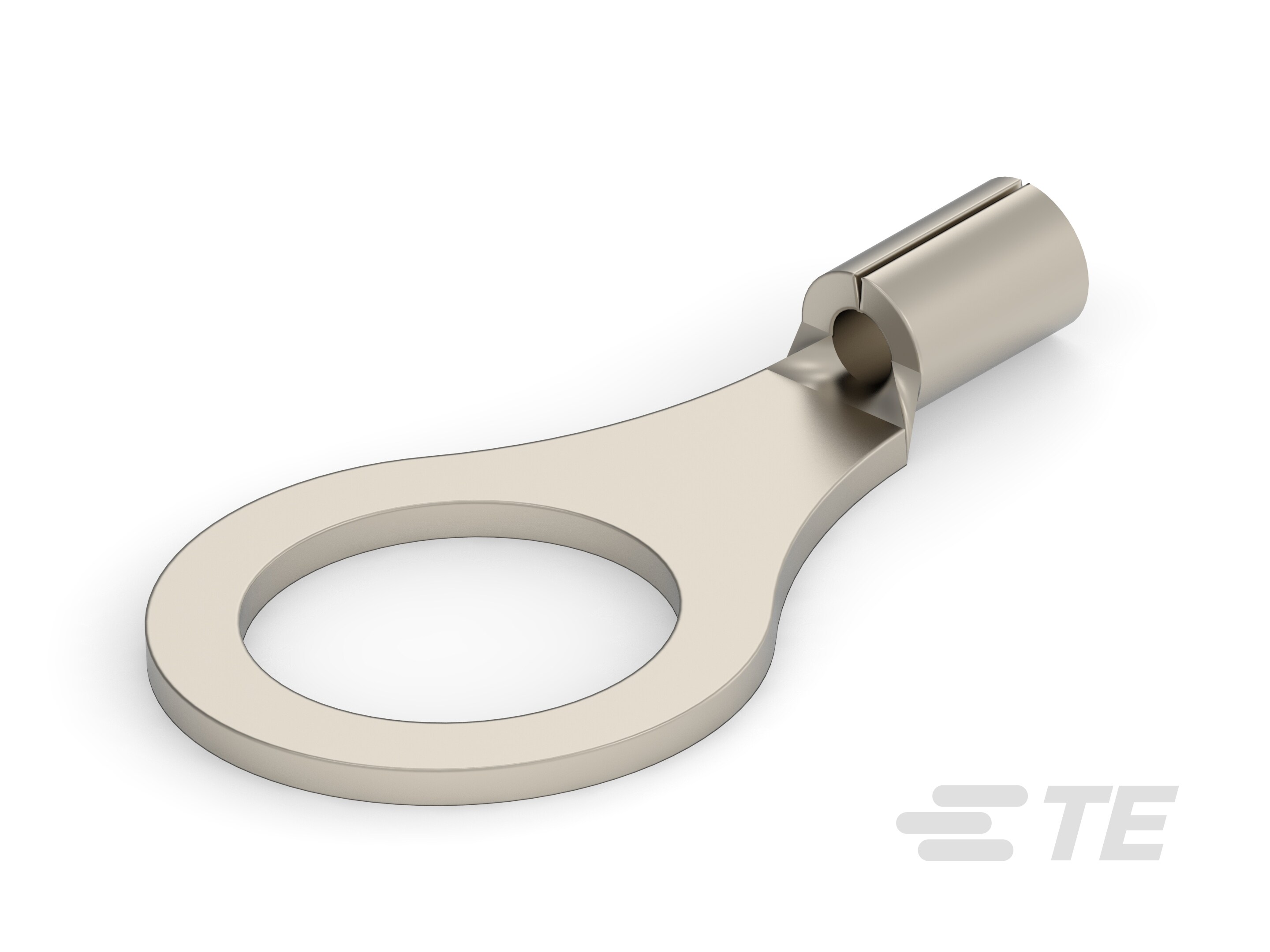

Closed Ring Tongue Terminal, 22 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Straight, Nickel Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 34114-4 |
|---|---|
| Contact Finish | Nickel |
| Contact Material | Copper |
| Insulation | Non-Insulated |
| Length - Overall | 0.856 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.3125 in |
| Stud/Tab Size | 16 Stud, 5 Stud |
| Stud/Tab Size (Type) | Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.469 in |
| Wire Gauge | 22 AWG |
