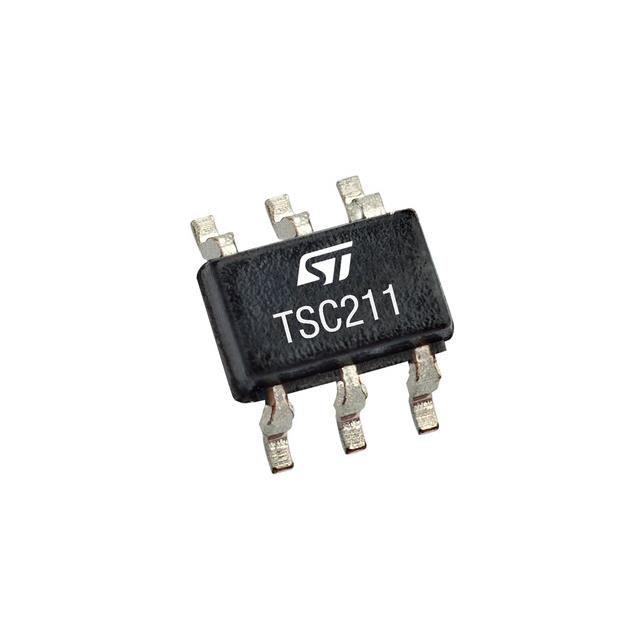

TSC211ICT
ActiveLOW / HIGH SIDE BIDIRECTIONAL, ZERO-DRIFT, CURRENT SENSE AMPLIFIERS
Deep-Dive with AI
Search across all available documentation for this part.
TSC211ICT
ActiveLOW / HIGH SIDE BIDIRECTIONAL, ZERO-DRIFT, CURRENT SENSE AMPLIFIERS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TSC211ICT | TSC211 Series |
|---|---|---|
| - | - | |
| Amplifier Type | Current Sense | Current Sense |
| Current - Input Bias | 28 µA | 28 µA |
| Current - Supply | 65 µA | 65 µA |
| Gain Bandwidth Product | 8 kHz | 8 kHz |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Slew Rate | 0.075 V/µs | 0.075 V/µs |
| Supplier Device Package | SC-70-6 | SC-70-6 |
| Voltage - Input Offset | 35 µV | 35 µV |
| Voltage - Supply Span (Max) [Max] | 26 V | 26 V |
| Voltage - Supply Span (Min) [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.06 | |
| 10 | $ 1.85 | |||
| 25 | $ 1.74 | |||
| 100 | $ 1.49 | |||
| 250 | $ 1.40 | |||
| 500 | $ 1.22 | |||
| 1000 | $ 1.01 | |||
| Digi-Reel® | 1 | $ 2.06 | ||
| 10 | $ 1.85 | |||
| 25 | $ 1.74 | |||
| 100 | $ 1.49 | |||
| 250 | $ 1.40 | |||
| 500 | $ 1.22 | |||
| 1000 | $ 1.01 | |||
| Tape & Reel (TR) | 3000 | $ 0.74 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.89 | |
| 10 | $ 1.39 | |||
| 25 | $ 1.27 | |||
| 50 | $ 1.20 | |||
| 100 | $ 1.13 | |||
| 250 | $ 1.07 | |||
| 500 | $ 1.03 | |||
| 1000 | $ 0.99 | |||
TSC211 Series
Low / High side bidirectional, zero-drift, current sense amplifiers
| Part | Current - Input Bias | Mounting Type | Voltage - Supply Span (Max) [Max] | Amplifier Type | Voltage - Supply Span (Min) [Min] | Number of Circuits | Gain Bandwidth Product | Current - Supply | Slew Rate | Package / Case | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input Offset |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TSC211IYQT | ||||||||||||||
STMicroelectronics TSC211ICT | 28 µA | Surface Mount | 26 V | Current Sense | 2.7 V | 1 | 8 kHz | 65 µA | 0.075 V/µs | 6-TSSOP, SC-88, SOT-363 | SC-70-6 | 125 °C | -40 °C | 35 µV |
STMicroelectronics TSC211IQT | ||||||||||||||
STMicroelectronics TSC211IYCT | ||||||||||||||
STMicroelectronics TSC211IYCT | ||||||||||||||
STMicroelectronics TSC211ICT | ||||||||||||||
STMicroelectronics TSC211ICT |
Description
General part information
TSC211 Series
The TSC210, TSC211, TSC212, TSC213, TSC214 and TSC215 are a series of zero-drift current sense amplifiers that can sense current via a shunt resistor over a wide range of common mode voltages from -0.3 to +26 V, whatever the supply voltage is. They are available in three different versions, each of them having a different gain. The TSC21x are designed with a specific zero-drift architecture, which can achieve high precision.
The TSC21x are current sense amplifiers that may be used in various functions such as precision current measurement, over current protection, current monitoring, feedback loops.
These devices fully operate over the broad supply voltage range of 2.7 to 26 V and over the industrial temperature range -40 to 125 °C.
