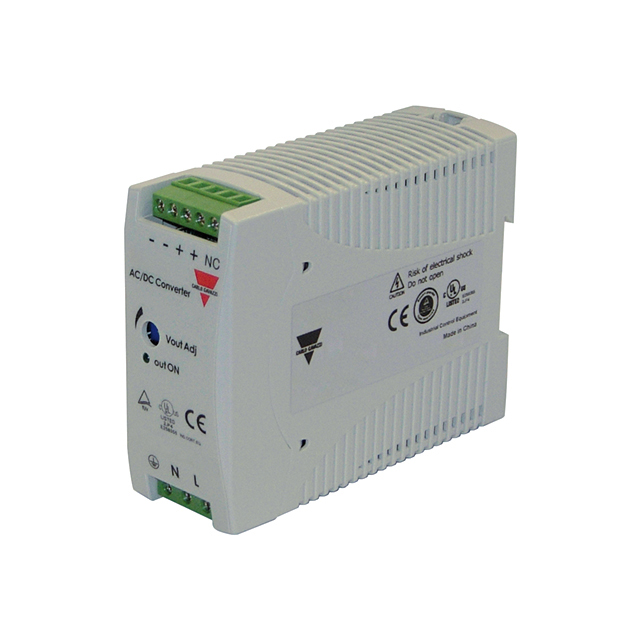

SPD12601

Obsolete

CARLO GAVAZZI

AC/DC DIN RAIL SUPPLY 12V 60W

Search across all available documentation for this part.

Obsolete

CARLO GAVAZZI

AC/DC DIN RAIL SUPPLY 12V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	SPD12601

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CCC, cULus, CE, TUV
Current - Output (Max) [Max]	5 A
Efficiency	86 %
Features	Adjustable Output, Universal Input, IP20
Input Type	AC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	4.49 in
Size / Dimension [x]	114 mm
Size / Dimension [y]	1.59 "
Size / Dimension [y]	40.5 mm
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.54 "
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

AC/DC DIN RAIL SUPPLY 12V 60W

Part	Applications	Current - Output (Max) [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Voltage - Isolation	Minimum Load Required	Approval Agency	Input Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]
CARLO GAVAZZI SPD12601	Hazardous Locations, Industrial, ITE (Commercial)	5 A	1	71 °C	-40 °C	86 %	85 VAC	264 VAC	Adjustable Output, IP20, Universal Input	3000 V		CCC, CE, cULus, TUV	AC	12 V	4.49 in	114 mm	1.59 "	40.5 mm	90 mm	3.54 "
