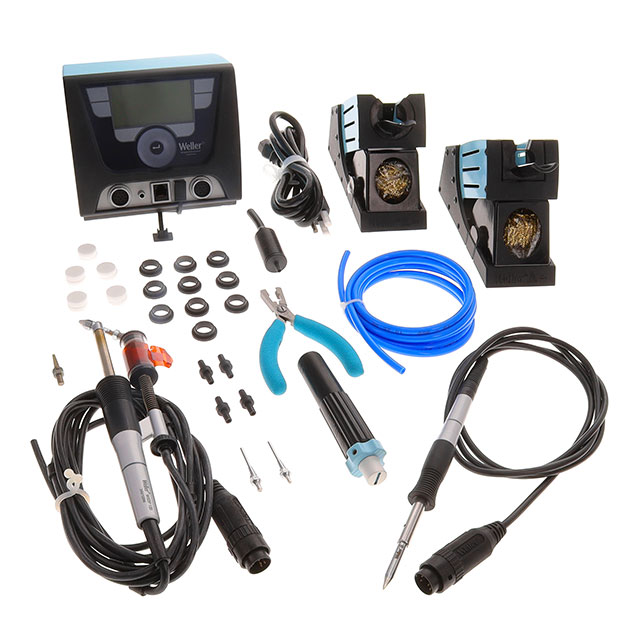

WXD2020N

Active

Apex Tool Group

DESOLDER STATION 200W 2 CH 120V

Search across all available documentation for this part.

Active

Apex Tool Group

DESOLDER STATION 200W 2 CH 120V

Technical Specifications

Parameters and characteristics for this part

Specification	WXD2020N

Control/Display Type	Digital
Features	LCD Display, Auto Off, Vacuum, USB Port
Includes	Iron Holder (2), Pliers
Number of Channels [custom]	2
Plug Type	NEMA 5-15
Supplied Iron, Tweezer, Handle	WXDP120, WXP120
Supplied Tips/Nozzles	Sold Separately
Temperature Range [Max]	450 °C
Temperature Range [Max]	850 °F
Temperature Range [Min]	100 °C
Temperature Range [Min]	200 °F
Tip Cleaner	Scouring Pad
Type	Desoldering
Voltage - Input	120 V
Voltage - Output	24 V
Wattage	200 W
Workstand	WDH10, WDH70

DESOLDER STATION 200W 2 CH 120V

Part	Workstand	Tip Cleaner	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Number of Channels [custom]	Supplied Tips/Nozzles	Supplied Iron, Tweezer, Handle	Wattage	Voltage - Output	Includes	Plug Type	Voltage - Input	Control/Display Type	Type	Features
Apex Tool Group WXD2020N	WDH10, WDH70	Scouring Pad	100 °C	200 °F	450 °C	850 °F	2	Sold Separately	WXDP120, WXP120	200 W	24 V	Iron Holder (2), Pliers	NEMA 5-15	120 V	Digital	Desoldering	Auto Off, LCD Display, USB Port, Vacuum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1656.00

General part information

DESOLDER STATION 200W 2 CH 120V

Technical documentation and resources
