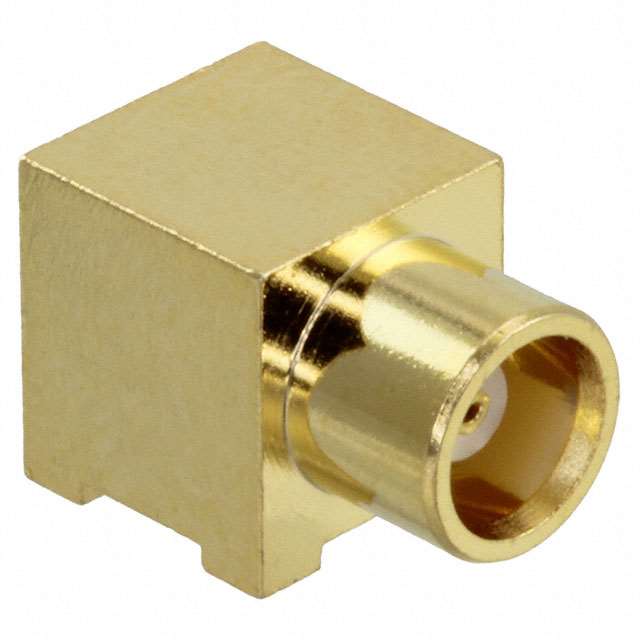

CONN MCX JACK R/A 50OHM SMD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MCX JACK R/A 50OHM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-1337583-0	1337583 Series

Body Finish	Gold	Gold
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	MCX	MCX
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On	Snap-On
Frequency - Max [Max]	6000 MHz	6000 MHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.1 dB	0.1 dB
Mating Cycles	500	500
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Solder	Solder
Voltage Rating	335 V	335 V

CONN MCX JACK R/A 50OHM SMD

Part	Mounting Type	Connector Style	Frequency - Max [Max]	Mating Cycles	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Connector Type	Voltage Rating	Impedance	Center Contact Material	Insertion Loss	Housing Color	Dielectric Material	Number of Ports	Fastening Type	Shield Termination	Center Contact Plating	Body Material
TE Connectivity AMP Connectors 1-1337583-0	Surface Mount, Right Angle	MCX	6000 MHz	500	Gold	85 °C	-40 °C	Solder	Female Socket, Jack	335 V	50 Ohms	Beryllium Copper	0.1 dB	Gold	Polytetrafluoroethylene (PTFE)	1	Snap-On	Solder	Gold	Brass
TE Connectivity AMP Connectors 6-1337583-0	Surface Mount, Right Angle	MCX	6000 MHz	500	Gold	85 °C	-40 °C	Solder	Female Socket, Jack	335 V	50 Ohms	Beryllium Copper	0.1 dB	Gold	Polytetrafluoroethylene (PTFE)	1	Snap-On	Solder	Gold	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Jack, Female Socket 50 Ohms Surface Mount, Right Angle Solder
