1609989-6

Active

TE Connectivity Corcom Filters

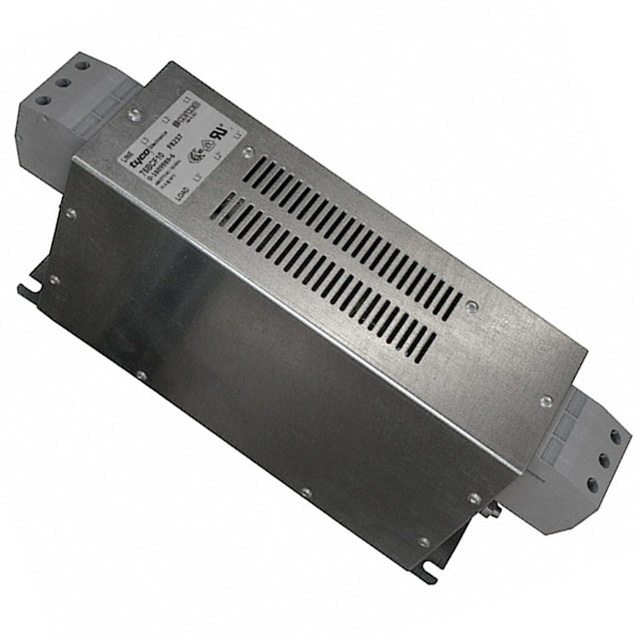

LINE FILTER 75A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 75A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1609989-6	1609989 Series

	-	-
Applications	Power Drive Systems, Inverters	Power Drive Systems, Inverters
Approval Agency	VDE, UR	VDE, UR
Configuration	Two Stage	Two Stage
Current	75 A	30 - 180 A
Filter Type	Three Phase (Delta)	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Termination Style	Terminal Block	Terminal Block
Voltage - Rated AC (Phase to Phase)	480 V	480 V

LINE FILTER 30A CHASSIS MOUNT

Part	Current	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Frequency - Operating [Max]	Frequency - Operating [Min]	Mounting Type	Filter Type	Voltage - Rated AC (Phase to Phase)	Approval Agency	Termination Style	Applications	Configuration
TE Connectivity Corcom Filters 1609989-3	30 A	-10 °C	50 °C	60 Hz	50 Hz	Chassis Mount	Three Phase (Delta)	480 V	UR, VDE	Terminal Block	Inverters, Power Drive Systems	Two Stage
TE Connectivity Corcom Filters 1609989-8	130 A	-10 °C	50 °C	60 Hz	50 Hz	Chassis Mount	Three Phase (Delta)	480 V	UR, VDE	Terminal Block	Inverters, Power Drive Systems	Two Stage
TE Connectivity Corcom Filters 1-1609989-7
TE Connectivity Corcom Filters 1609989-9	180 A	-10 °C	50 °C	60 Hz	50 Hz	Chassis Mount	Three Phase (Delta)	480 V	UR, VDE	Terminal Block	Inverters, Power Drive Systems	Two Stage
TE Connectivity Corcom Filters 1609989-6	75 A	-10 °C	50 °C	60 Hz	50 Hz	Chassis Mount	Three Phase (Delta)	480 V	UR, VDE	Terminal Block	Inverters, Power Drive Systems	Two Stage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 75 A 50/60Hz Two Stage Terminal Block
