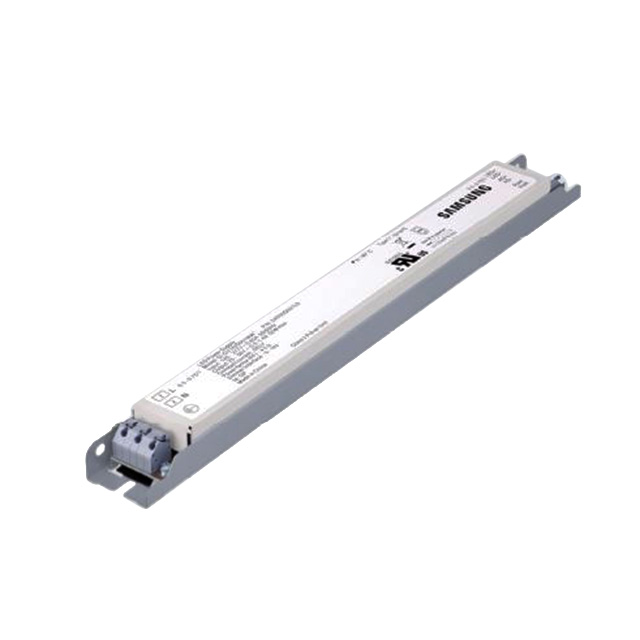

SI-CU1425001WW
ObsoleteSamsung Semiconductor, Inc.
LED DVR CC AC/DC 20-50V 1.4A
SI-CU1425001WW
ObsoleteSamsung Semiconductor, Inc.
LED DVR CC AC/DC 20-50V 1.4A
Description
General part information
SI-CU1425001WW
1.4A 20 ~ 50V Constant Current LED Driver AC DC Converter Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | SI-CU1425001WW |
|---|---|
| Approval Agency | cURus |
| Current - Output (Max) | 1.4 A |
| Dimming | Analog |
| Efficiency | 87 % |
| Features | SCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 50 W |
| Ratings | IP20 |
| Size / Dimension Height | 0.83 in |
| Size / Dimension Length | 11.81 in |
| Size / Dimension Width | 1.18 in |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) | 277 VAC |
| Voltage - Input (Min) | 108 V |
| Voltage - Output (Max) | 50 V |
| Voltage - Output (Min) | 20 V |
| Weight | 0.507 lb |
