Description
General part information

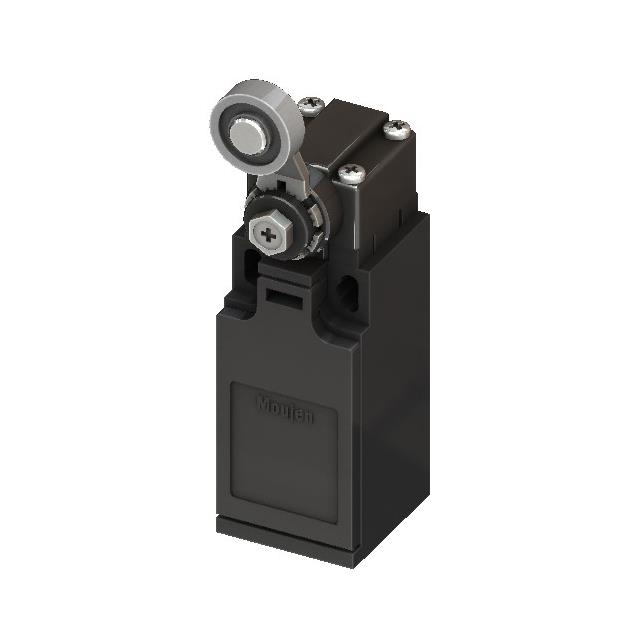

MEA-9104 G
Switch SPDT (DB/DM) Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MEA-9104 G |
|---|---|
| Actuator Type | Side Rotary, Roller |
| Circuit | SPDT (DB/DM) |
| Current Rating | 6 A, 0.4 A |
| Differential Travel (Angle) | 12 ° |
| Electrical Life (Cycles) | 500000 |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 300 gf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -15 °C |
| Overtravel (Angle) | 50 ° |
| Pretravel (Angle) | 20 ° |
| Release Force | 100 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
