EKY-500ELL561MM15S

Active

Chemi-Con

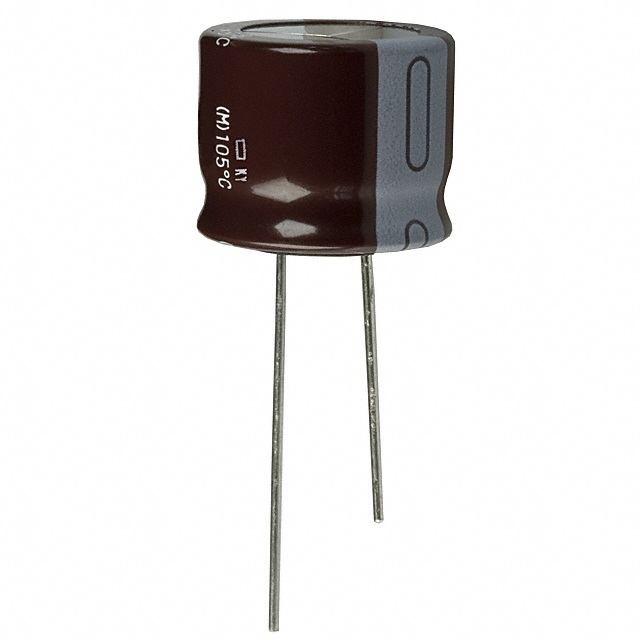

CAP ALUM 560UF 20% 50V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-500ELL561MM15S

Active

Chemi-Con

CAP ALUM 560UF 20% 50V RADIAL TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.08
		10	$ 0.81
		50	$ 0.74
		100	$ 0.60
		500	$ 0.48
		1000	$ 0.43
		2500	$ 0.40
		5000	$ 0.38

Description

General part information

EKY-500E Series

560 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKY-500ELL561MM15S	EKY-500E Series

Applications	General Purpose	General Purpose
Capacitance	560 µF	1.5 - 2200 µF
Height - Seated (Max)	-	0.492 - 1.24 in
Height - Seated (Max)	-	1.634 - 31.5 mm
Height - Seated (Max)	-	14 mm
Height - Seated (Max)	-	41.5 mm
Height - Seated (Max) [Max] [z]	16.5 mm	16.5 - 37 mm
Height - Seated (Max) [Max] [z]	16.51 mm	1.043 - 16.51 in
Impedance	54 mOhms	1.9 - 700 Ohms
Lead Spacing	7.5 mm	2 - 7.5 mm
Lead Spacing	0.295 in	0.079 - 0.295 in
Lifetime @ Temp.	10000 Hrs	5000 - 10000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	1.93 A	1.05 - 295 mA
Ripple Current @ Low Frequency	965 mA	1.326 - 965 mA
Size / Dimension [diameter]	0.709 "	0.197 - 0.709 "
Size / Dimension [diameter]	18 mm	5 - 18 mm
Tolerance	20 %	20 %
Voltage - Rated	50 VDC	50 VDC

EKY-500E Series

CAP ALUM 4.7UF 20% 50V RADIAL TH

Part	Voltage - Rated	Capacitance	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Applications	Impedance	Lead Spacing	Lead Spacing	Mounting Type	Package / Case	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-500ETD4R7ME11D	50 VDC	4.7 µF	88 mA	0.492 in	12.5 mm	35.2 mA	General Purpose	1.9 Ohms	2 mm	0.079 in	Through Hole	Radial, Can	5000 Hrs	5 mm	0.197 "	20 %	Polar	-40 °C	105 ░C
Chemi-Con EKY-500ELL151MJC5S	50 VDC	150 µF		0.551 "		304 mA	General Purpose	120 mOhms	5 mm	0.197 in	Through Hole	Radial, Can	7000 Hrs	10 mm	0.394 in	20 %	Polar	-40 °C	105 ░C	14 mm
Chemi-Con EKY-500ETD2R2ME11D	50 VDC	2.2 µF	43 mA	0.492 in	12.5 mm	17.2 mA	General Purpose	2.5 Ohms	2 mm	0.079 in	Through Hole	Radial, Can	5000 Hrs	5 mm	0.197 "	20 %	Polar	-40 °C	105 ░C
Chemi-Con EKY-500ELL471MJ30S	50 VDC	470 µF	1.69 A	1.24 in	31.5 mm	845 mA	General Purpose	43 mOhms	5 mm	0.197 in	Through Hole	Radial, Can	7000 Hrs	10 mm	0.394 in	20 %	Polar	-40 °C	105 ░C
Chemi-Con EKY-500ELL182ML40S	50 VDC	1800 µF	3.71 A		1.634 "	2.226 A	General Purpose	16 mOhms	7.5 mm	0.295 in	Through Hole	Radial, Can	10000 Hrs	16 mm	0.63 in	20 %	Polar	-40 °C	105 ░C		41.5 mm
Chemi-Con EKY-500ELL220ME11D	50 VDC	22 µF	180 mA	0.492 in	12.5 mm	72 mA	General Purpose	700 mOhms	2 mm	0.079 in	Through Hole	Radial, Can	5000 Hrs	5 mm	0.197 "	20 %	Polar	-40 °C	105 ░C
Chemi-Con EKY-500ELL152MLP1S	50 VDC	1.5 mF	3.15 A			1.89 A	General Purpose	19 mOhms	7.5 mm	0.295 in	Through Hole	Radial, Can	10000 Hrs	16 mm	0.63 in	20 %	Polar	-40 °C	105 ░C			37 mm	1.457 in
Chemi-Con EKY-500ETC4R7ME11S	50 VDC	4.7 µF	88 mA	0.492 in	12.5 mm	35.2 mA	General Purpose	1.9 Ohms	2 mm	0.079 in	Through Hole	Radial, Can	5000 Hrs	5 mm	0.197 "	20 %	Polar	-40 °C	105 ░C
Chemi-Con EKY-500ELL821MK35S	50 VDC	820 µF	2.51 A			1.506 A	General Purpose	25 mOhms	5 mm	0.197 in	Through Hole	Radial, Can	10000 Hrs	12.5 mm	0.492 in	20 %	Polar	-40 °C	105 ░C			36.5 mm	1.437 in
Chemi-Con EKY-500ELL222MMP1S	50 VDC	2200 µF	3.68 A			2.76 A	General Purpose	17 mOhms	7.5 mm	0.295 in	Through Hole	Radial, Can	10000 Hrs	18 mm	0.709 "	20 %	Polar	-40 °C	105 ░C			37 mm	1.457 in
