FNN.2F.319.XLC

Active

LEMO

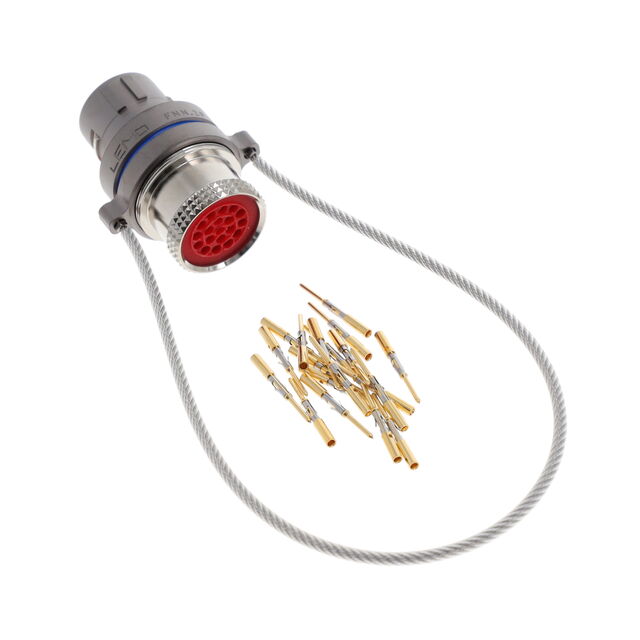

CONN PLUG MALE 19POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 19POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FNN.2F.319.XLC	FNN.2F Series

	-	-
Applications	Aerospace	Aerospace
Cable Opening [custom]	14 mm	14 mm
Cable Opening [custom]	0.551 in	0.551 in
Color	Gray	Gray
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Features	Lanyard	Lanyard
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	19	19
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-15 °C	-15 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	319	319
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG MALE 19POS GOLD CRIMP

Part	Contact Material	Shell Material	Mounting Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Color	Material Flammability Rating	Shielding	Shell Finish	Number of Positions	Contact Finish - Mating	Features	Current Rating (Amps)	Fastening Type	Primary Material	Insert Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Termination	Applications
LEMO FNN.2F.319.XLC	Brass	Aluminum Alloy	Free Hanging (In-Line)	N	200 °C	-15 °C	14 mm	0.551 in	319	Gray	UL94 V-0	Shielded	Nickel	19	Gold	Lanyard	5 A	Push-Pull	Metal	Polyetheretherketone (PEEK)	Male Pins, Plug	1 µm	39.4 µin	IP67 - Dust Tight, Waterproof	Crimp	Aerospace
LEMO FNN.2F.310.XLC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

19 Position Circular Connector Plug, Male Pins Crimp
