704.229.200

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY PUSHBUTTON ILLUM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.229.200	704.229 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Actuator Type	Pushbutton, Square	Pushbutton, Square
Illumination	-	Illuminated - Yellow, Illuminated, Illuminated - Blue
Panel Cutout Dimensions	30.5 mm	22.3 - 30.5 mm
Requires	Illumination Source, Contact Block(s)	Illumination Source, Contact Block(s)
Type	Momentary	Momentary

CONFIG SW BODY PUSHBUTTON ILLUM

Part	Illumination	Panel Cutout Dimensions	Actuator Type	Requires	Type	(Select First, Then Apply Filters) Compatible Series
EAO 704.229.400	Illuminated - Yellow	30.5 mm	Pushbutton, Square	Contact Block(s), Illumination Source	Momentary	04, EAO
EAO 704.229.200		30.5 mm	Pushbutton, Square	Contact Block(s), Illumination Source	Momentary	04, EAO
EAO 704.229.2		22.3 mm	Pushbutton, Square	Contact Block(s), Illumination Source	Momentary	04, EAO
EAO 704.229.700	Illuminated	30.5 mm	Pushbutton, Square	Contact Block(s), Illumination Source	Momentary	04, EAO
EAO 704.229.600	Illuminated - Blue	30.5 mm	Pushbutton, Square	Contact Block(s), Illumination Source	Momentary	04, EAO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

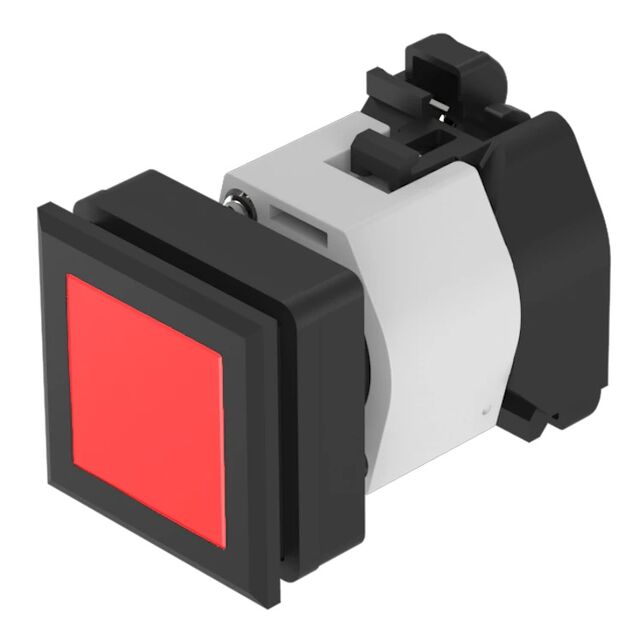

Configurable Switch Body Pushbutton, Square Illuminated - Red
