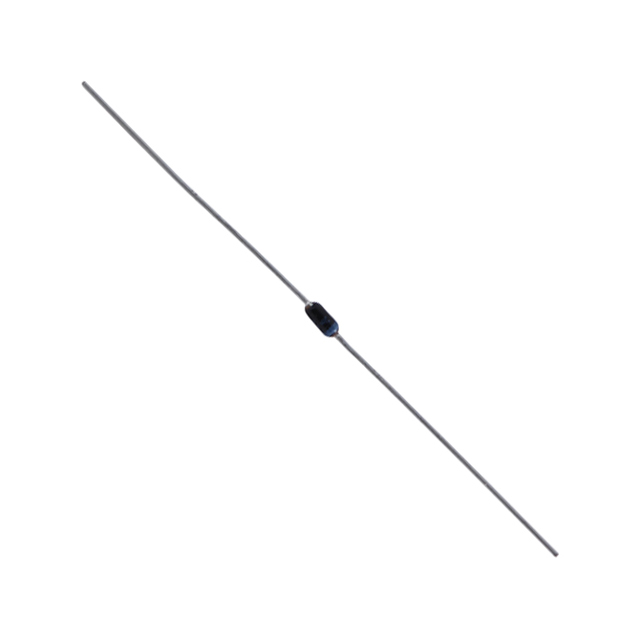

1N960B
ActiveNTE Electronics, Inc
DIODE ZENER 9.1V 500MW DO35
1N960B
ActiveNTE Electronics, Inc
DIODE ZENER 9.1V 500MW DO35
Description
General part information
1N960B
Zener Diode 9.1 V 500 mW ±5% Through Hole DO-35
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N960B |
|---|---|
| Current - Reverse Leakage | 25 µA |
| Impedance (Max) (Zzt) | 7.5 Ohms |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Axial, DO-35, DO-204AH |
| Package Name | DO-35 |
| Power - Max | 0.5 W |
| Tolerance | 5 % |
| Voltage - Zener (Nom) (Vz) | 9.1 V |
