Description
General part information

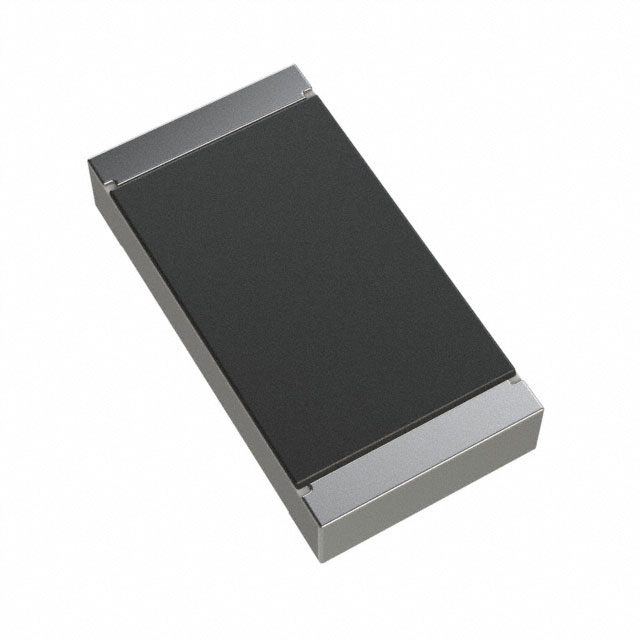

PCS1206DR0100ET
10 mOhms ±0.5% 1W Chip Resistor 1206 (3216 Metric) Current Sense Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PCS1206DR0100ET |
|---|---|
| Composition | Metal Film |
| Features | Current Sense |
| Height - Seated (Max) | 0.027 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Power (Watts) | 1 W |
| Resistance | 10 mOhms |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.065 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 0.5 % |
