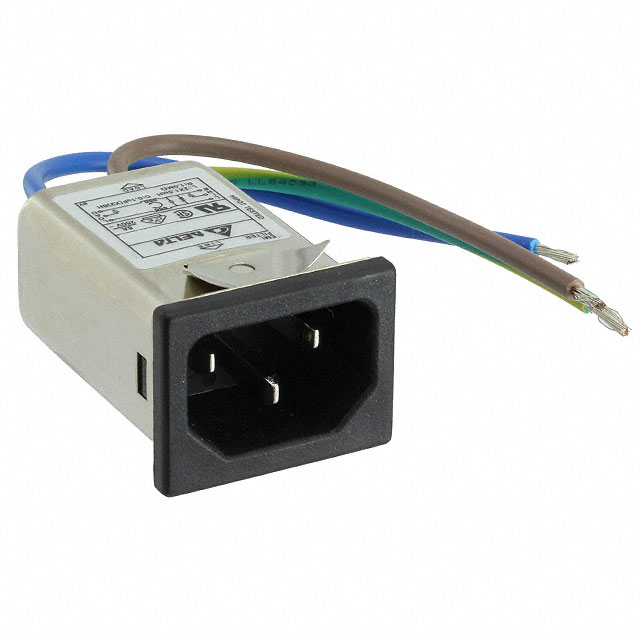

06GENW3QM-R

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMedical Filters Datasheet

06GENW3QM-R

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL WIRE

Deep-Dive with AI

DocumentsMedical Filters Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	06GENW3QM-R	06GENW Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	6 A	6 A
Current Rating - Filter	6 A	6 A
Features	Bleed Resistor	Bleed Resistor, Mounting Clip
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions	-	29.5 mm
Panel Cutout Dimensions	-	21.5 mm
Panel Thickness [Max]	0.063 in	0.063 in
Panel Thickness [Max]	1.6 mm	1.6 mm
Panel Thickness [Min]	0.81 mm	0.81 mm
Panel Thickness [Min]	0.032 in	0.032 in
Termination	Wire Leads	Wire Leads
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

06GENW Series

PWR ENT RCPT IEC320-C14 PNL WIRE

Part	Current Rating - Filter	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Features	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Connector Style	Current Rating - Appliance Inlet	Mounting Type	Connector Type	Termination	Approval Agency	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
Delta Electronics 06GENW3EM-R	6 A	115 VAC	250 VAC	Bleed Resistor	0.81 mm	0.032 in	0.063 in	1.6 mm	IEC 320-C14	6 A	Panel Mount, Snap-In	Male Blades, Receptacle	Wire Leads	CSA, UL, VDE	Filtered (EMI, RFI) - Commercial, Medical
Delta Electronics 06GENW3QM	6 A	115 VAC	250 VAC		0.81 mm	0.032 in	0.063 in	1.6 mm	IEC 320-C14	6 A	Panel Mount, Snap-In	Male Blades, Receptacle	Wire Leads	CSA, UL, VDE	Filtered (EMI, RFI) - Commercial, Medical
Delta Electronics 06GENW3E	6 A	115 VAC	250 VAC		0.81 mm	0.032 in	0.063 in	1.6 mm	IEC 320-C14	6 A	Panel Mount, Snap-In	Male Blades, Receptacle	Wire Leads	CSA, UL, VDE	Filtered (EMI, RFI) - Commercial
Delta Electronics 06GENW3EM-R(H)	6 A	115 VAC	250 VAC	Bleed Resistor, Mounting Clip	0.81 mm	0.032 in	0.063 in	1.6 mm	IEC 320-C14	6 A	Panel Mount, Snap-In	Male Blades, Receptacle	Wire Leads	CSA, UL, VDE	Filtered (EMI, RFI) - Commercial, Medical	29.5 mm	21.5 mm
Delta Electronics 06GENW3QM-R	6 A	115 VAC	250 VAC	Bleed Resistor	0.81 mm	0.032 in	0.063 in	1.6 mm	IEC 320-C14	6 A	Panel Mount, Snap-In	Male Blades, Receptacle	Wire Leads	CSA, UL, VDE	Filtered (EMI, RFI) - Commercial, Medical
Delta Electronics 06GENW3QM-R(H)	6 A	115 VAC	250 VAC	Bleed Resistor, Mounting Clip	0.81 mm	0.032 in	0.063 in	1.6 mm	IEC 320-C14	6 A	Panel Mount, Snap-In	Male Blades, Receptacle	Wire Leads	CSA, UL, VDE	Filtered (EMI, RFI) - Commercial, Medical	29.5 mm	21.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

06GENW Series

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In

Documents

Technical documentation and resources

Medical Filters

Datasheet
