PA2202.181NL
ActivePulse Electronics
FIXED IND 180NH 36A 0.48MOHM SMD
PA2202.181NL
ActivePulse Electronics
FIXED IND 180NH 36A 0.48MOHM SMD
Description
General part information
PA2202.181NL

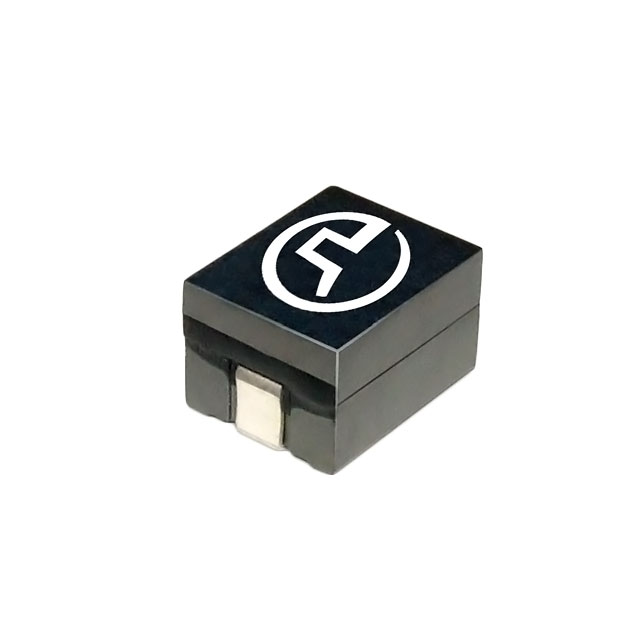

180 nH Unshielded Inductor 36 A 0.48mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA2202.181NL |
|---|---|
| Current - Saturation (Isat) | 64 A |
| Current Rating | 36 A |
| DC Resistance (DCR) | 0.48 mOhm |
| Height - Seated (Max) | 0.236 in |
| Inductance | 180 nH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.476 in |
| Size / Dimension Width | 0.394 in |
| Tolerance | 15 % |
