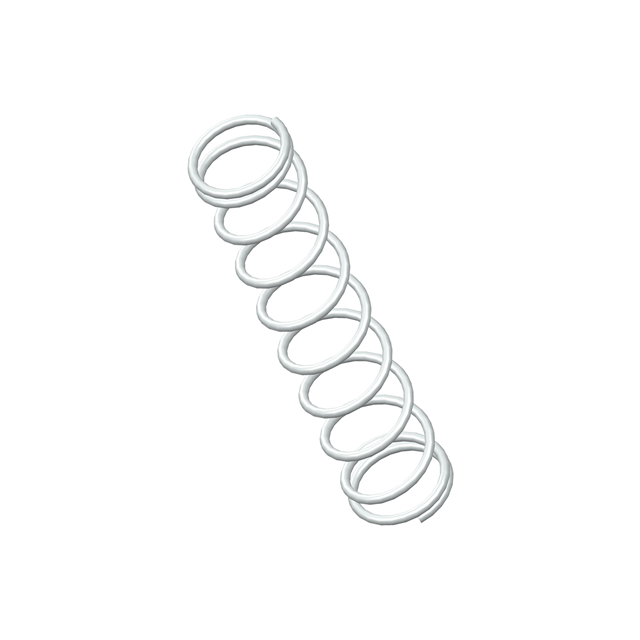

70032SCS
ActiveCentury Spring Corp
COMP O= .088,L= .44,W= .008
70032SCS
ActiveCentury Spring Corp
COMP O= .088,L= .44,W= .008
Description
General part information
70032SCS
COMP O= .088,L= .44,W= .008
Technical Specifications
Parameters and characteristics for this part
| Specification | 70032SCS |
|---|---|
| Diameter - Inside | 0.072 in |
| Diameter - Outside | 0.088 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.44 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 1.2 lbs/in |
| Type | Compression |
| Wire Diameter | 0.008 in |
