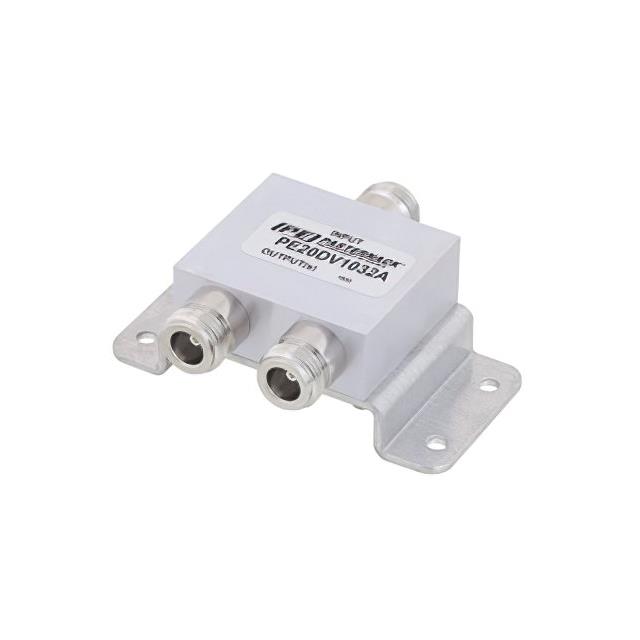

PE20DV1032A
ActivePasternack
2 WAY N POWER DIVIDER FROM 617 M
PE20DV1032A
ActivePasternack
2 WAY N POWER DIVIDER FROM 617 M
Description
General part information
PE20DV1032A
RF Power Divider 617 MHz ~ 2.7 GHz Isolation (Min) 21dB, 1.3 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PE20DV1032A |
|---|---|
| Frequency (Max) | 2.7 GHz |
| Frequency (Min) | 617 MHz |
| Insertion Loss | 0.5 dB |
| Isolation (Min) | 21 dB |
| Package / Case | Module |
| Size / Dimension Height | 1.348 in |
| Size / Dimension Length | 3.579 in |
| Size / Dimension Width | 1.752 in |
| VSWR (Max) | 1.3 |
