3240187

Active

Phoenix Contact

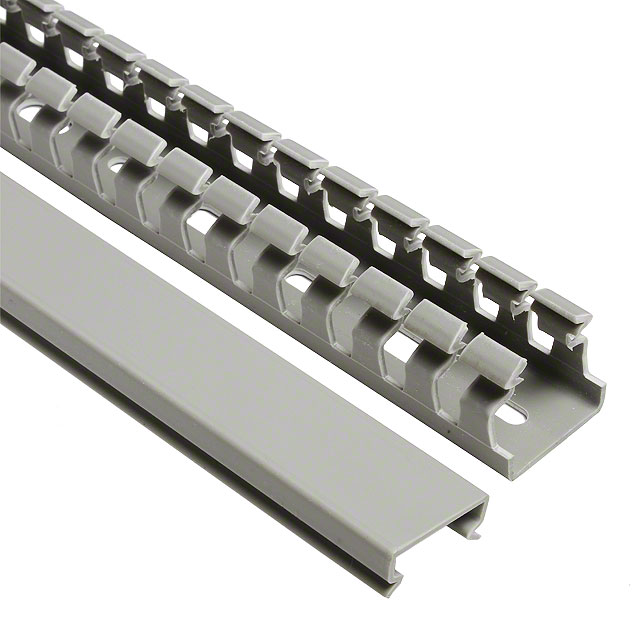

WIREDUCT SLOTTED 2PC RIVET 6.56'

Search across all available documentation for this part.

Active

Phoenix Contact

WIREDUCT SLOTTED 2PC RIVET 6.56'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3240187	CD 25 Series

Color	Gray	Gray, Blue
Features	Separate Snap in Lid (Included)	Separate Snap in Lid (Included)
Height [z]	25 mm	25 - 60 mm
Height [z]	0.984 in	0.984 - 2.362 in
Length [x]	2 m	2 m
Length [x]	6.56 ft	6.56 ft
Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Mounting Type	Rivet	Rivet
Width	25 mm	25 mm
Width [x]	0.984 in	0.984 in
Wire Duct Type	Slotted (Raceway)	Solid (Raceway), Slotted (Raceway)
Wire Duct Type	2 Piece	2 Piece

WIRE DUCT SOLID 2PC RIVET 6.56'

Part	Wire Duct Type	Wire Duct Type	Features	Width	Width [x]	Height [z]	Height [z]	Mounting Type	Length [x]	Length [x]	Color	Material
Phoenix Contact 3240188	2 Piece	Solid (Raceway)	Separate Snap in Lid (Included)	25 mm	0.984 in	1.575 in	40 mm	Rivet	2 m	6.56 ft	Gray	Poly-Vinyl Chloride (PVC)
Phoenix Contact 3240302	2 Piece	Slotted (Raceway)	Separate Snap in Lid (Included)	25 mm	0.984 in	1.575 in	40 mm	Rivet	2 m	6.56 ft	Blue	Poly-Vinyl Chloride (PVC)
Phoenix Contact 3240187	2 Piece	Slotted (Raceway)	Separate Snap in Lid (Included)	25 mm	0.984 in	0.984 in	25 mm	Rivet	2 m	6.56 ft	Gray	Poly-Vinyl Chloride (PVC)
Phoenix Contact 3240191	2 Piece	Slotted (Raceway)	Separate Snap in Lid (Included)	25 mm	0.984 in	2.362 in	60 mm	Rivet	2 m	6.56 ft	Gray	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Duct Gray Slotted (Raceway), 2 Piece Rivet 6.56' (2.00m)
