IHXL1500VZEB1R5M5A
ActiveVishay Dale
FIXED IND 1.5UH 178A 0.26MOHM TH
IHXL1500VZEB1R5M5A
ActiveVishay Dale
FIXED IND 1.5UH 178A 0.26MOHM TH
Description
General part information
IHXL1500VZEB1R5M5A

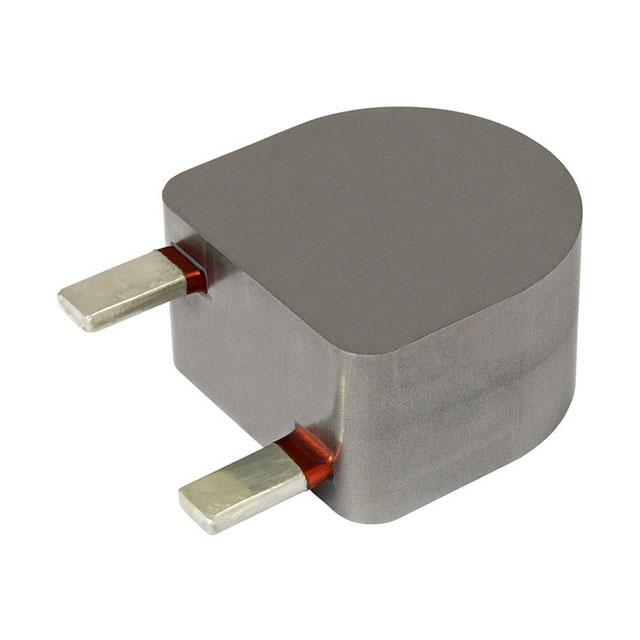

1.5 µH Shielded Inductor 178 A 0.26mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | IHXL1500VZEB1R5M5A |
|---|---|
| Current Rating | 178 A |
| DC Resistance (DCR) (Max) | 0.26 mOhm |
| Height - Seated (Max) | 0.872 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 500 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 1.5 in |
| Size / Dimension Width | 1.5 in |
| Tolerance | 20 % |
