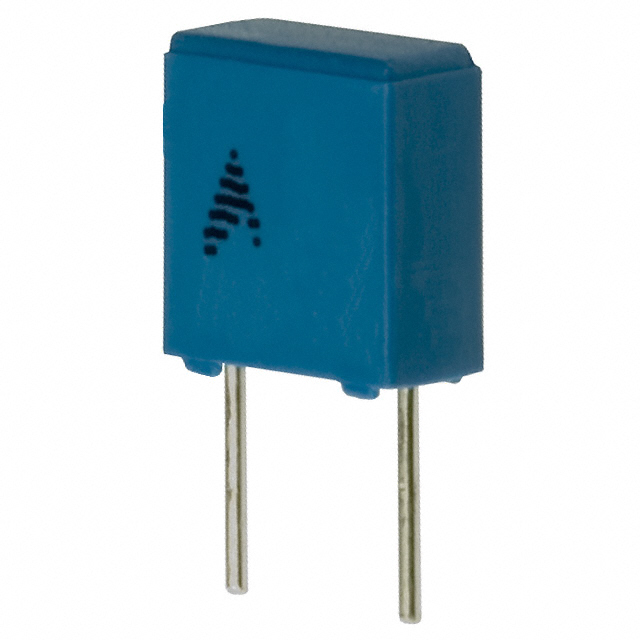

B32529C3124K289
ActiveEPCOS - TDK Electronics
CAP FILM 0.12UF 10% 250VDC RAD
B32529C3124K289
ActiveEPCOS - TDK Electronics
CAP FILM 0.12UF 10% 250VDC RAD
Description
General part information
B32529C3124K289
0.12 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32529C3124K289 |
|---|---|
| Applications | EMI, Automotive, RFI Suppression |
| Capacitance | 0.12 µF |
| Dielectric Material | Metallized - Stacked, Polyester, Polyethylene Terephthalate (PET) |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 160 V |
| Voltage Rating - DC | 250 VDC |
