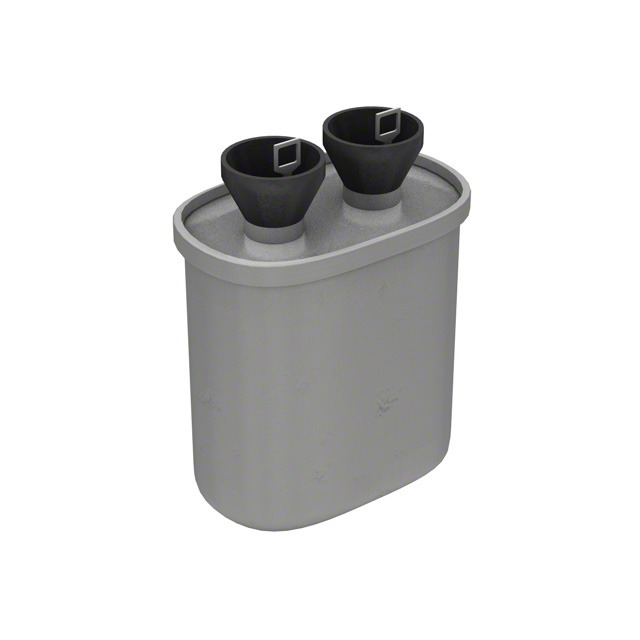

OTBL104KNPIR-F
ActiveCornell Dubilier Knowles
CAP FILM 0.1UF 10% 3KVDC RADIAL
OTBL104KNPIR-F
ActiveCornell Dubilier Knowles
CAP FILM 0.1UF 10% 3KVDC RADIAL
Description
General part information
OTBL104KNPIR-F
0.1 µF Film Capacitor 950V 3000V (3kV) Paper, Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | OTBL104KNPIR-F |
|---|---|
| Applications | DC Link, DC Filtering, Motor Run |
| Capacitance | 0.1 µF |
| Dielectric Material | Metallized, Paper |
| Height - Seated (Max) | 57.15 mm |
| Lead Spacing | 0.81 in |
| Mounting Type | Bracket, Chassis Mount, Requires Holder |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 2.16 in |
| Size / Dimension Width | 1.31 in |
| Termination | Solder Lug |
| Tolerance | 10 % |
| Voltage Rating - AC | 950 VAC |
| Voltage Rating - DC | 3000 V |
